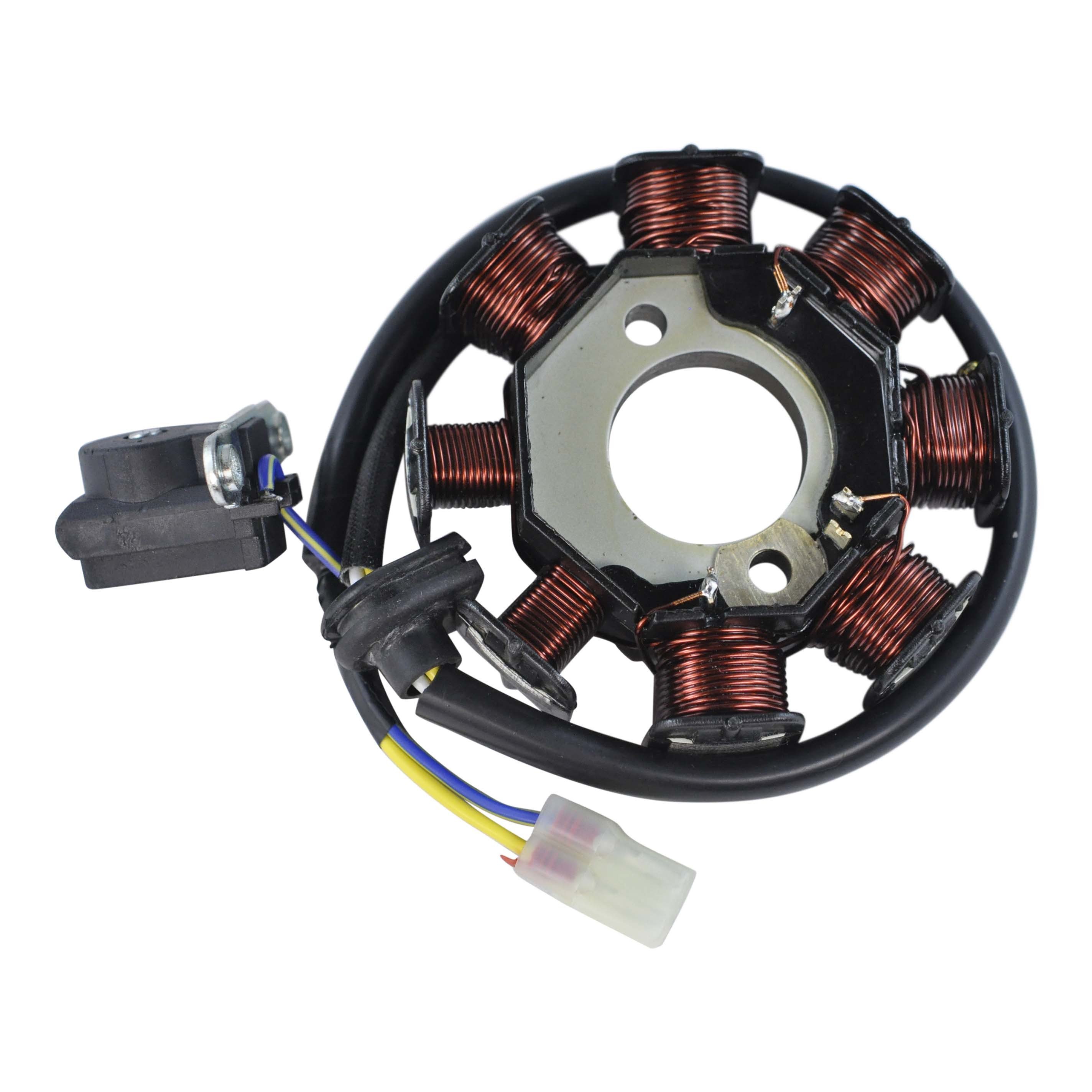

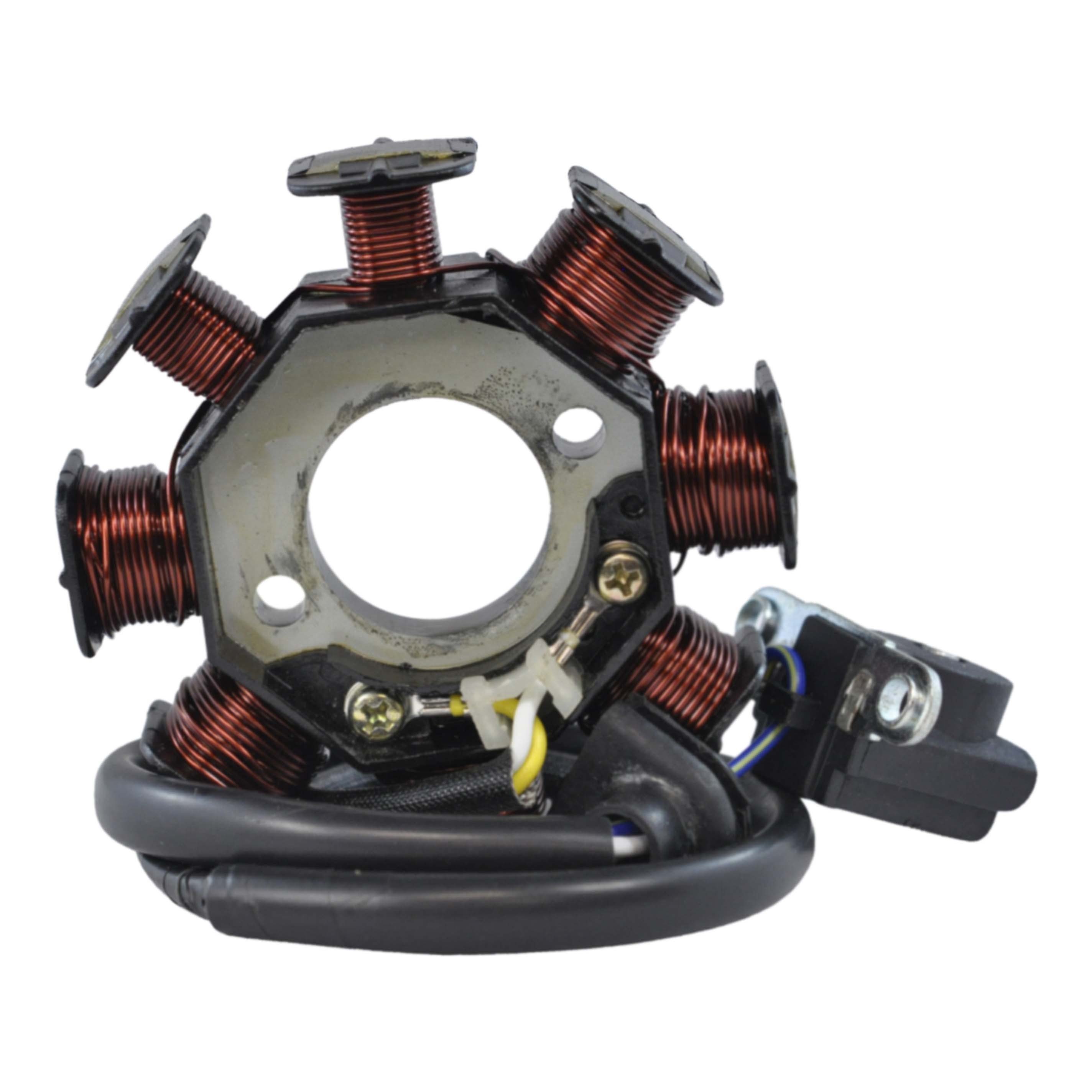

Dimensions:
Interior diameter: 28mm
Exterior diameter: 87mm
Thickness: 8mm
Length of wires stator to grommet: 112mm
Length of wires grommet to plug: 325mm
Length of pickup coil’s wire to grommet: 25mm
Other Specifications:
Number of wires: 3

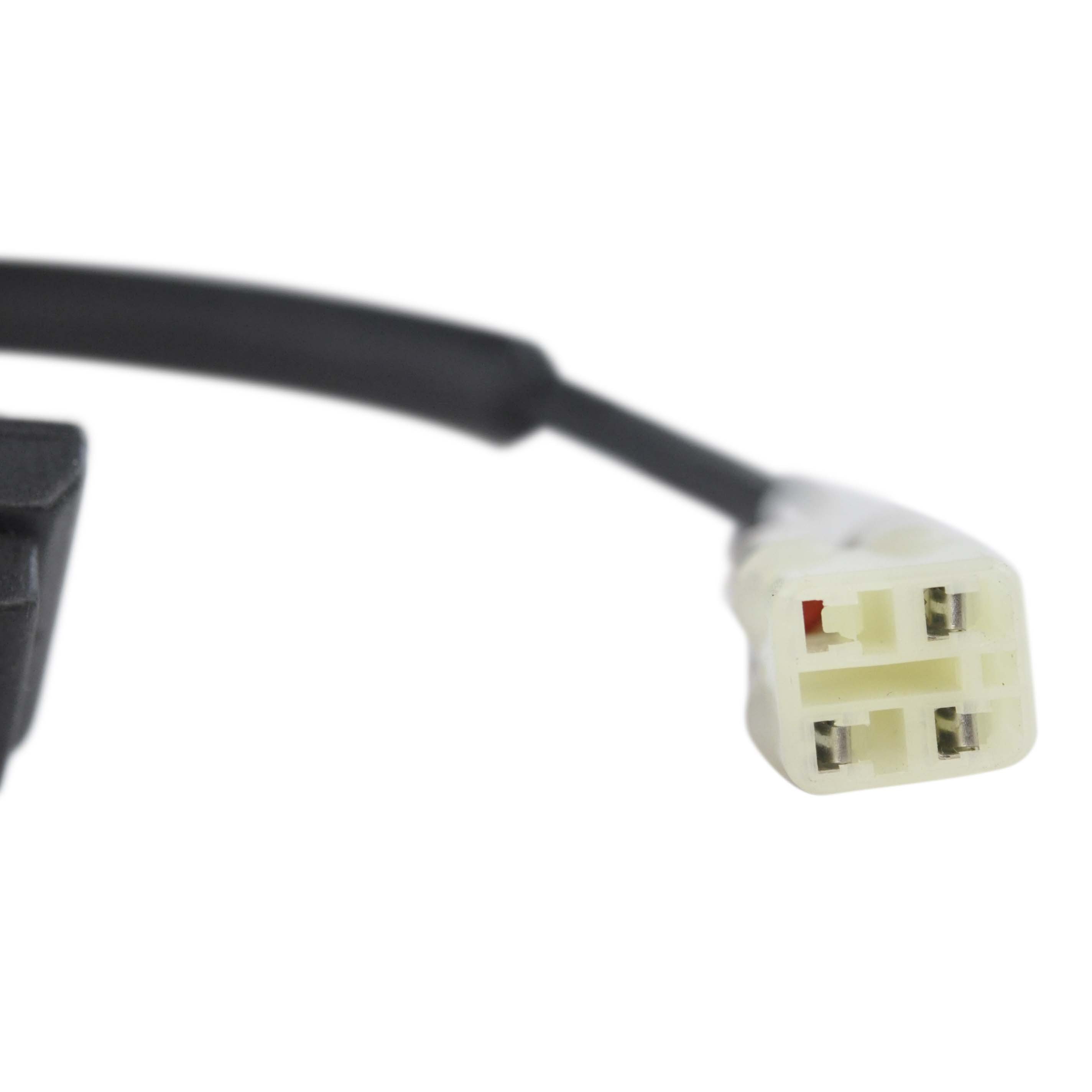

Number of plugs: 1
Number of terminals: 3
Wire to wire resistance:
Alternator: = 0.4ohms +/-20%
Pickup: = 110ohms =+/-20%
