Fimco UTV Sprayer 65 Gallon With Boom – UTV-65-7 (UTV657)

SKU: 350.5302830
Item Condition: New

In stock

Login or register to view our best trade prices
Full Description
Technical Details
PDF Downloads

Fimco UTV 65 (US) Gallons Sprayer with 140″ Spray Coverage

  • Quality Product
  • Made with premium materials

Features

  • 4.5 GPM High Flo High Performance pump features an internally fan cooled motor as well as chemically resistant valves and diaphragms which increase durability ensuring longer pump life

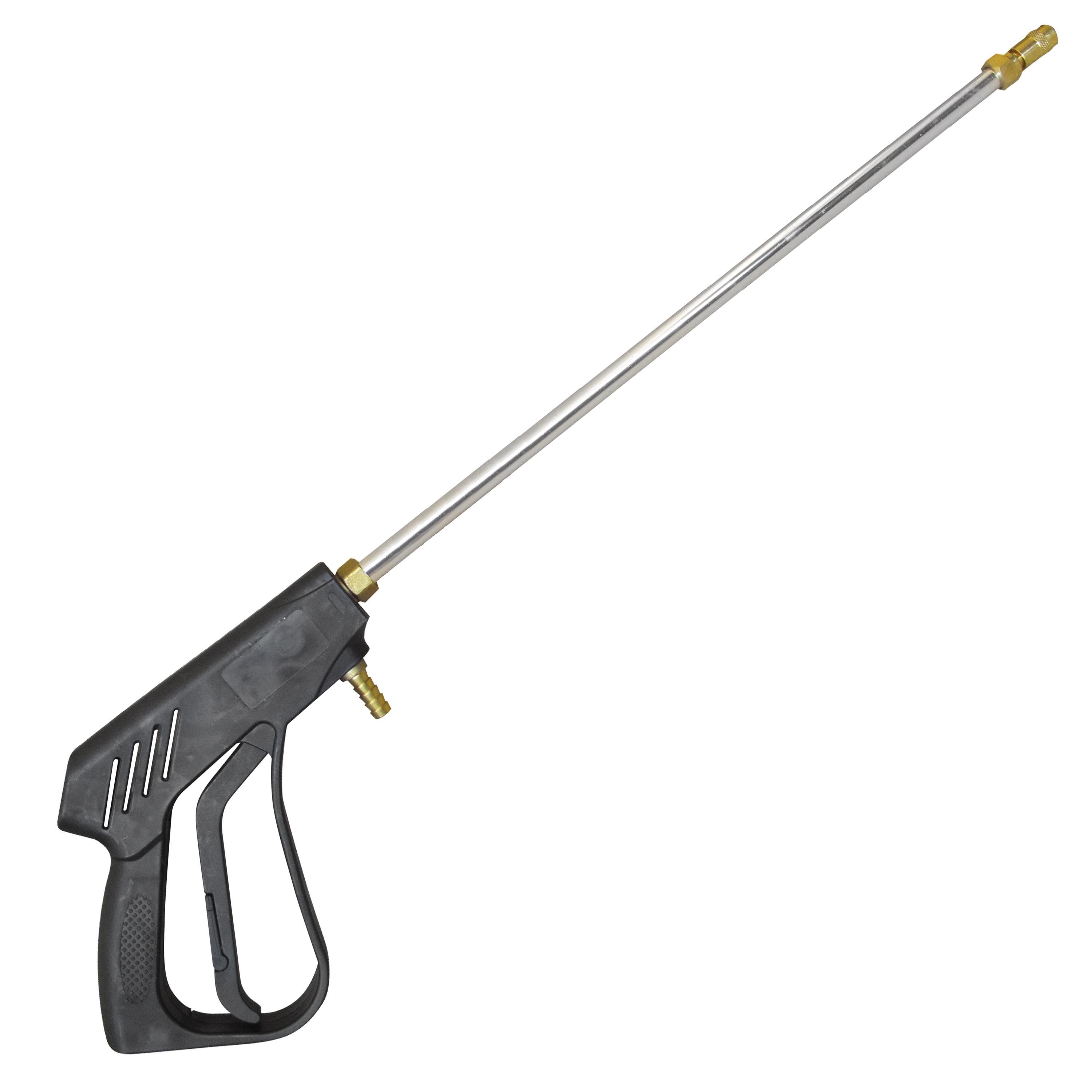

  • Deluxe pistol grip handgun delivers up to 40 feet of horizontal spray and 25 feet of vertical spray and features an ergonomic polymer handle and precision brass tip.

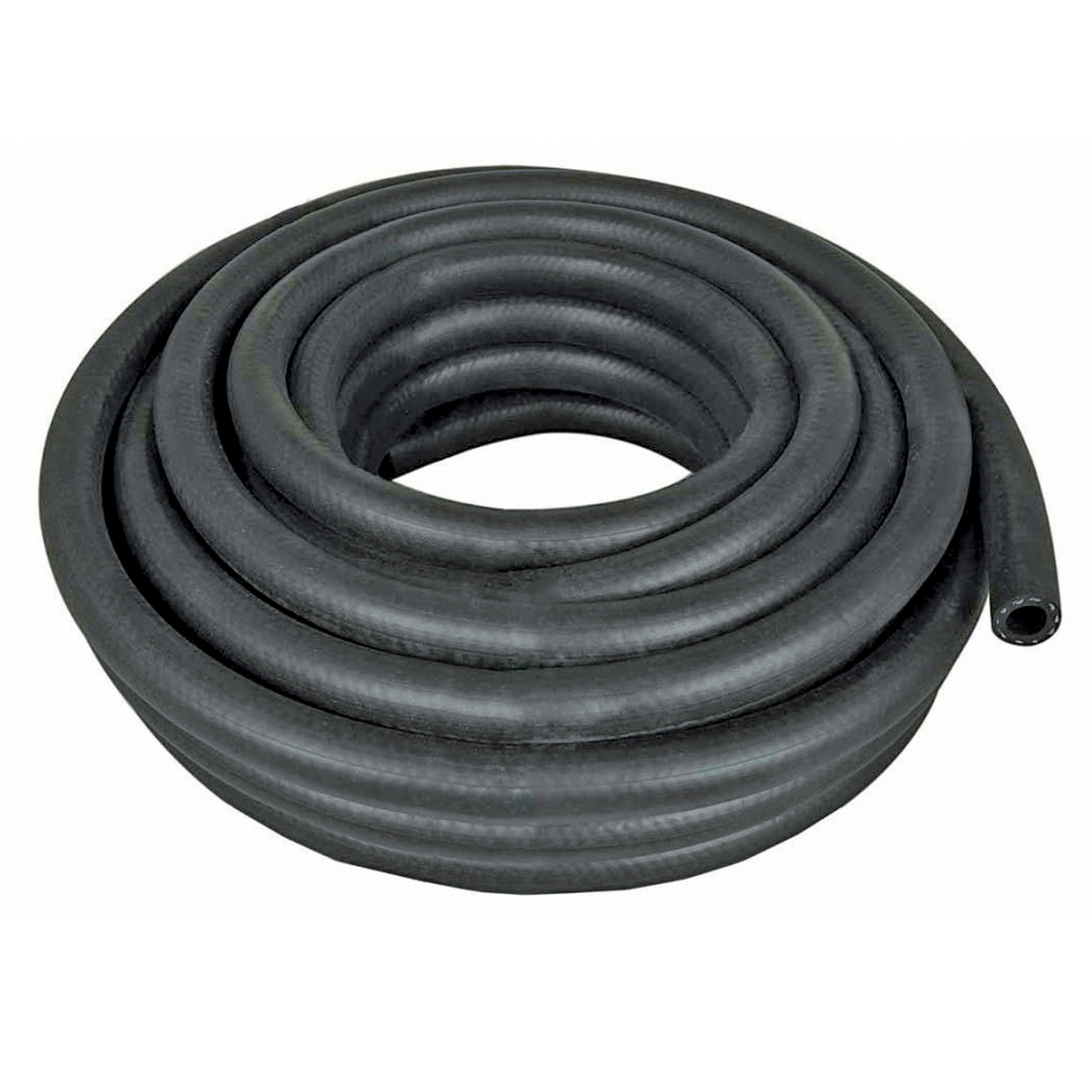

  • 25 Feet of hose gives you the length necessary to reach tight areas, around buildings and other obstacles
  • Durable 65 Gallon roto molded tank features UV stabilizers, molded in baffles, transport handles and comes with 5 inch FIMCO measuring lid which eliminates the need for additional liquid measuring cups

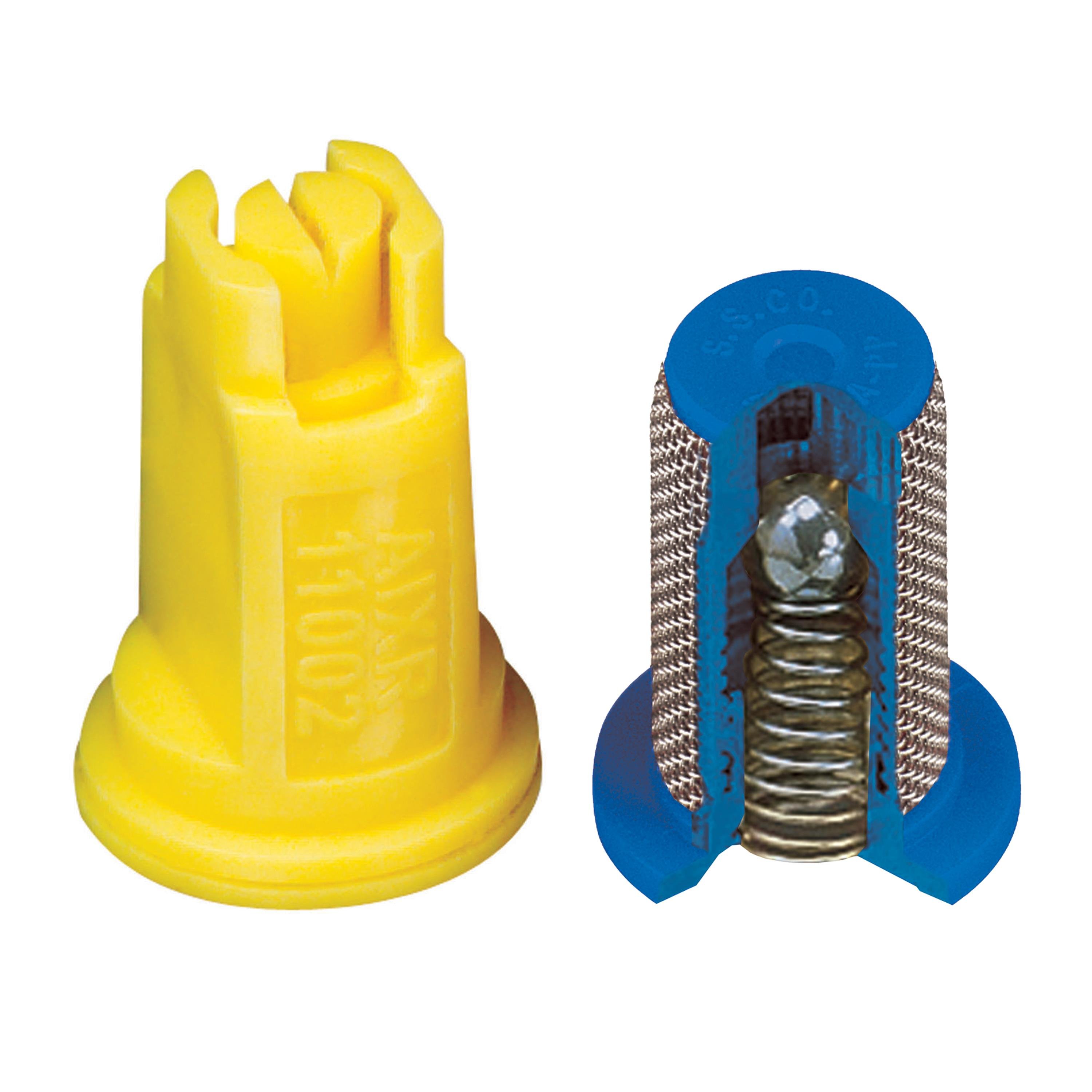

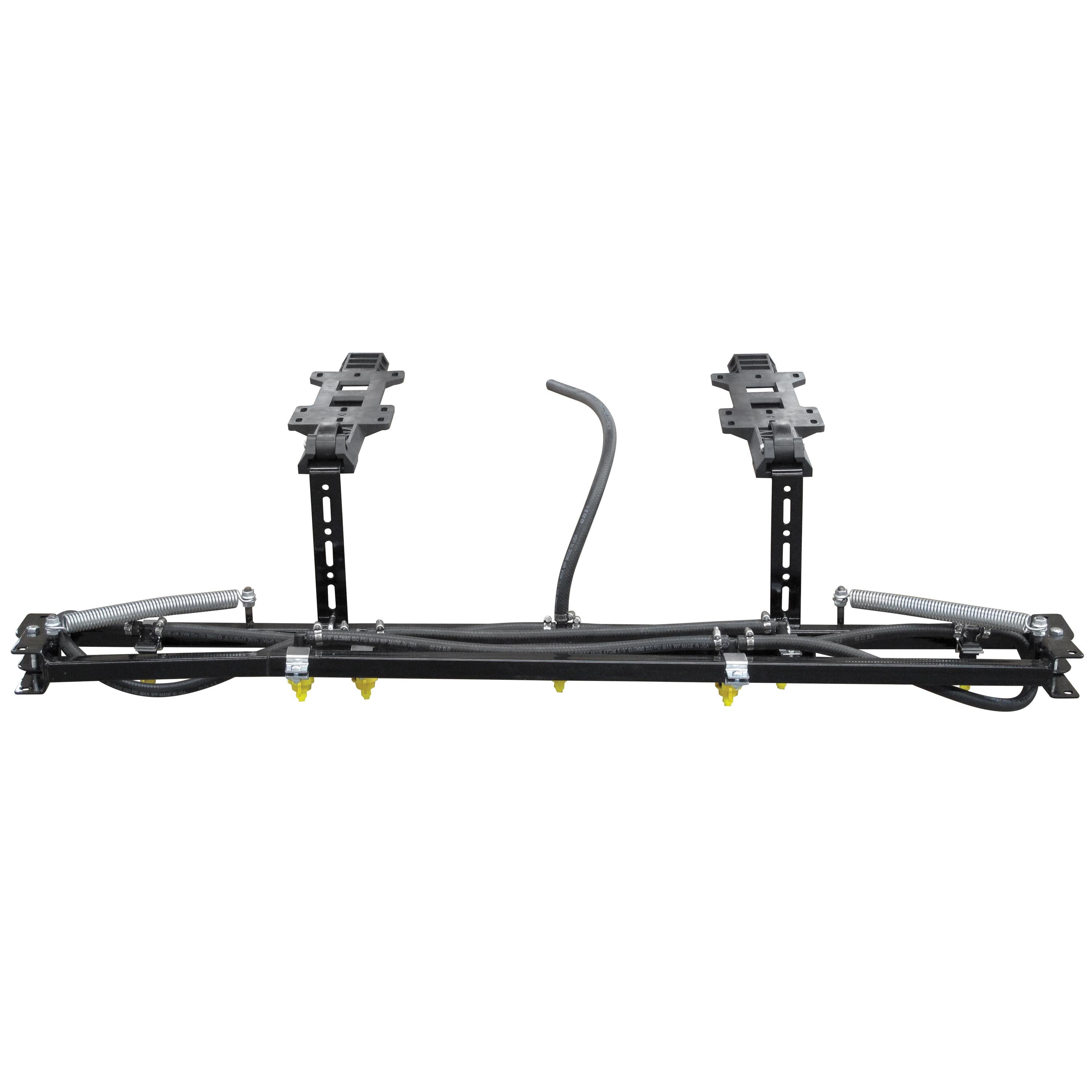

  • Folding 7 nozzle welded breakaway steel boom delivers 12 feet of total spray coverage, features Teejet® tips and is spring loaded for easy deployment, use and storage
  • Innovative top mounted boom design means you don’t have to remove your tailgate to install our sprayer
  • Tank Dimensions 47″ x 34.5″


As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.

As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.

What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical

Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook  Instagram  Twitter

  • Tank Size (Gal)65
  • Flow (GPM)4.5
  • Pressure (PSI)60
  • Spray Gun TypeDeluxe Pistol Grip Handgun
  • Spray PatternAdjustable Pattern Tip
  • Pump TypeHIGH FLO
  • Spray Height (ft.)28
  • Horizontal Spray Distance (ft.)40

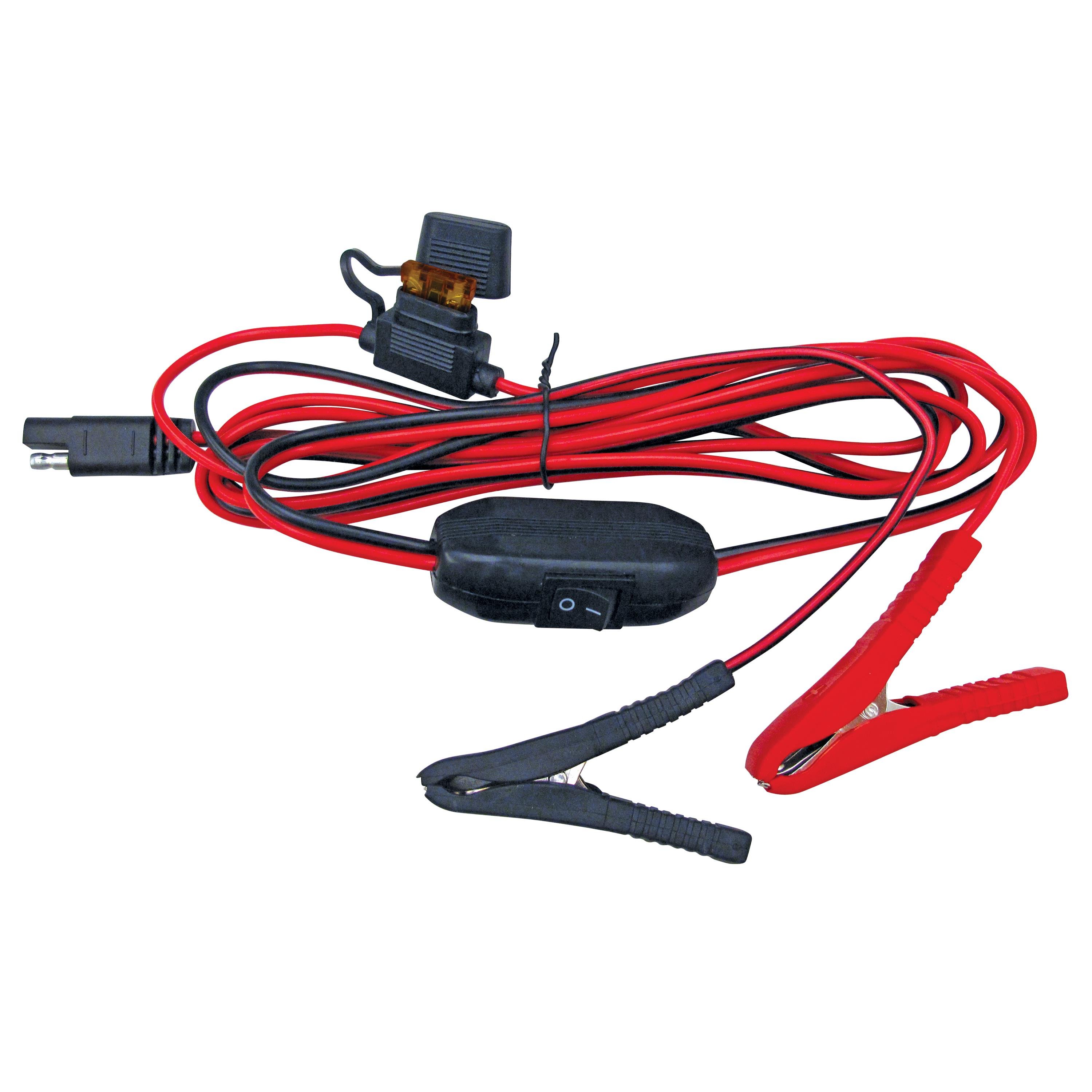

  • Power Supply12V
  • Hose (in. x ft.)3/8 x 25
  • Boom Spray Coverage (ft.)12
Part Application/Fitment
Model
Code
Year
Manufacturer
Engine
MEC2200
350.5302830
0
KIOTI
Daedong 3-61 22HP Dsl
MEC2210
350.5302830
0
KIOTI
Daedong 3-61 22HP Dsl
MEC2230
350.5302830
0
KIOTI
Daedong 3-61 22HP Dsl
Interchanges/Cross References
Model
Code
5302830
FIMCO
