High Output Performance Stator 200W + AC Regulator for Yamaha | YFZ 350 Banshee

SKU: RM01034
Item Condition: New

In stock

Login or register to view our best trade prices
Full Description
Technical Details

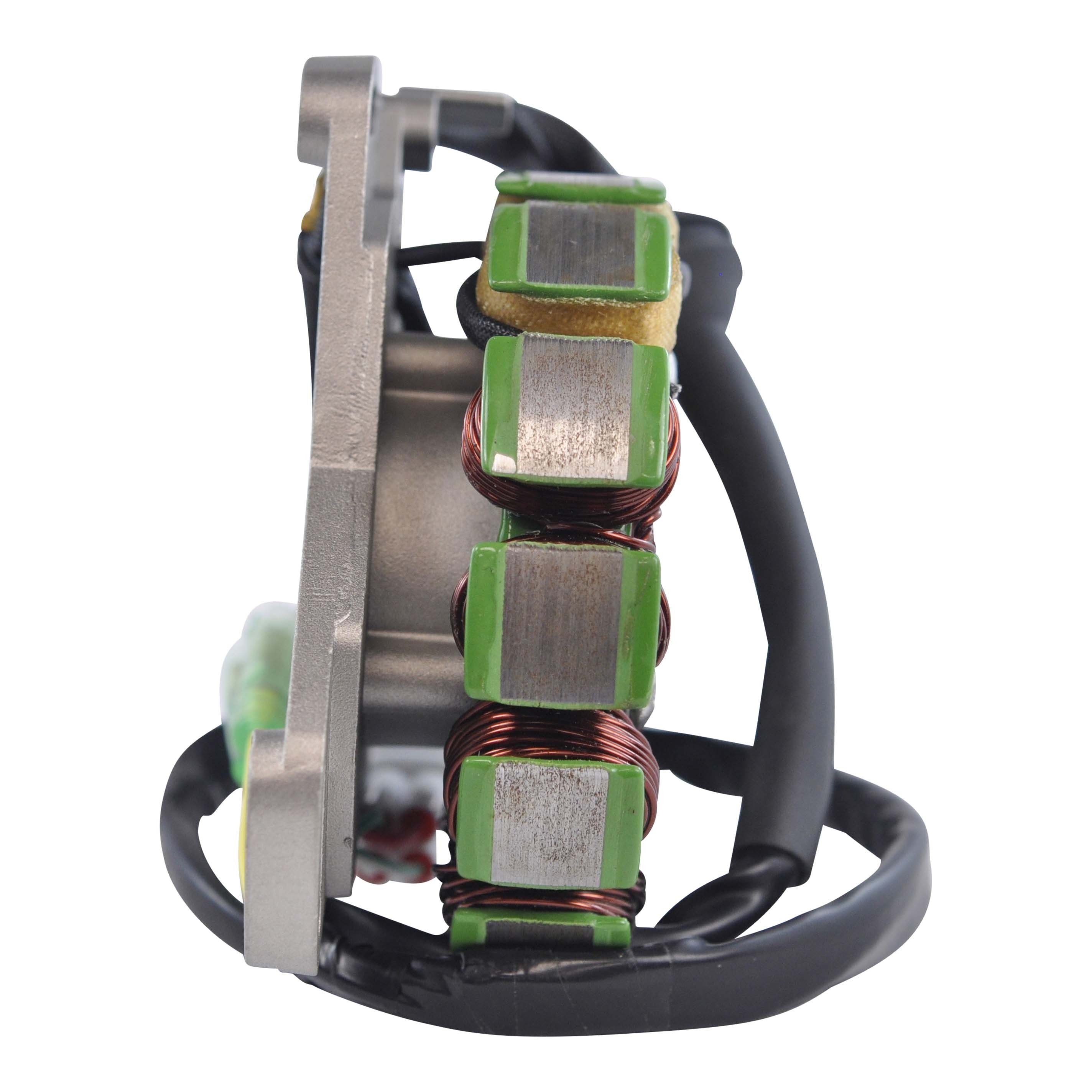

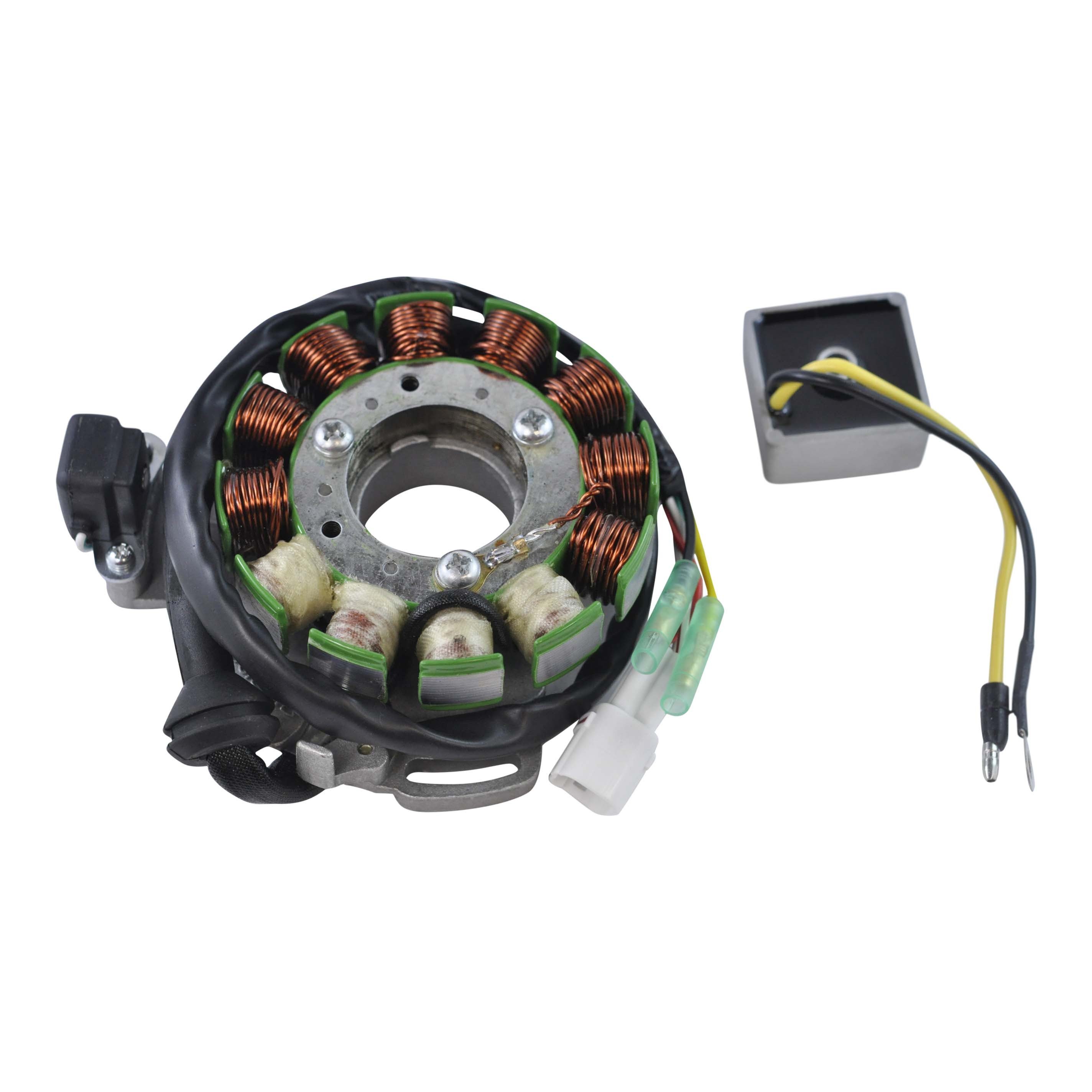

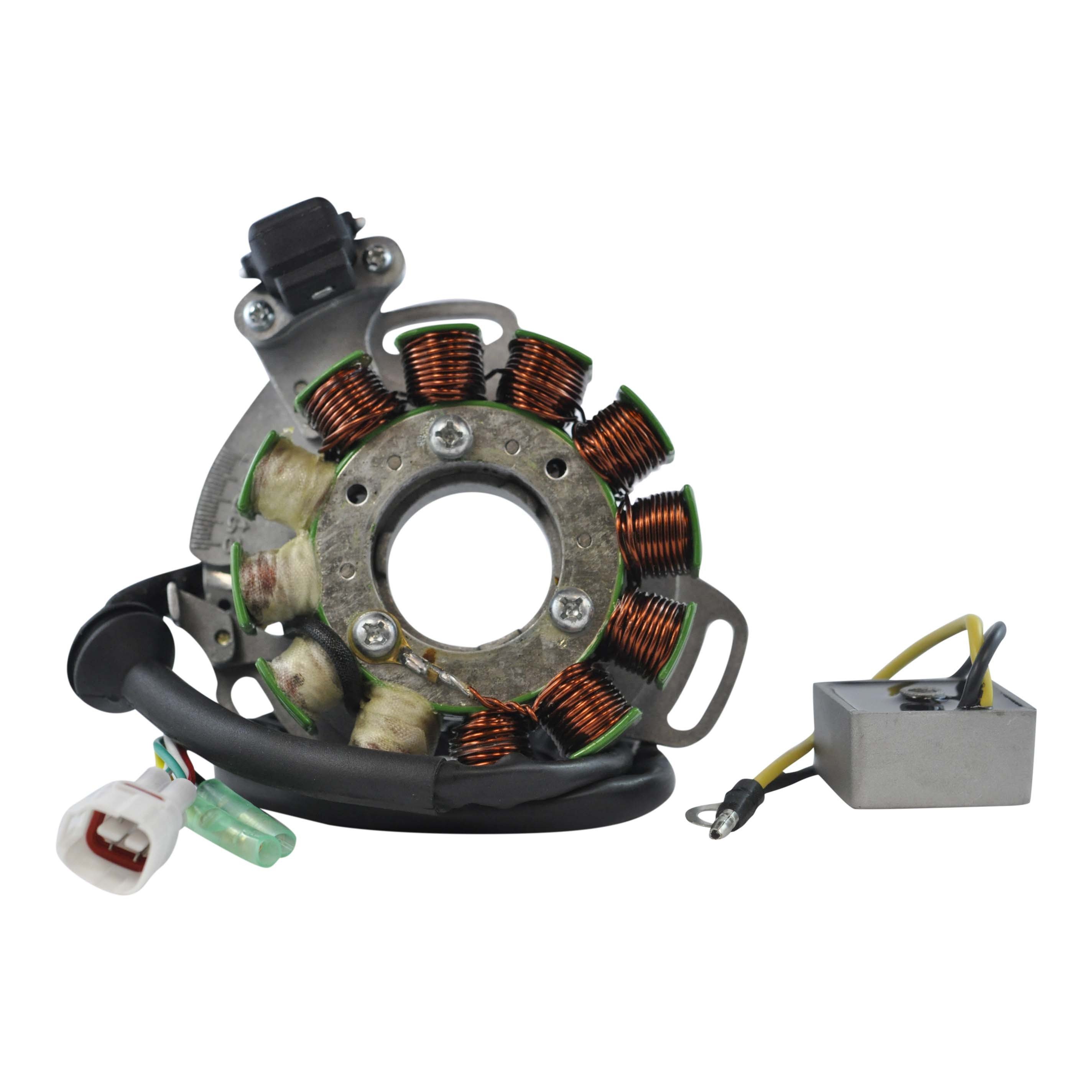

High Output Performance Stator 200W + AC Regulator for Yamaha | YFZ 350 Banshee

High Output Performance Stator 200W + AC Regulator for Yamaha | YFZ 350 Banshee

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

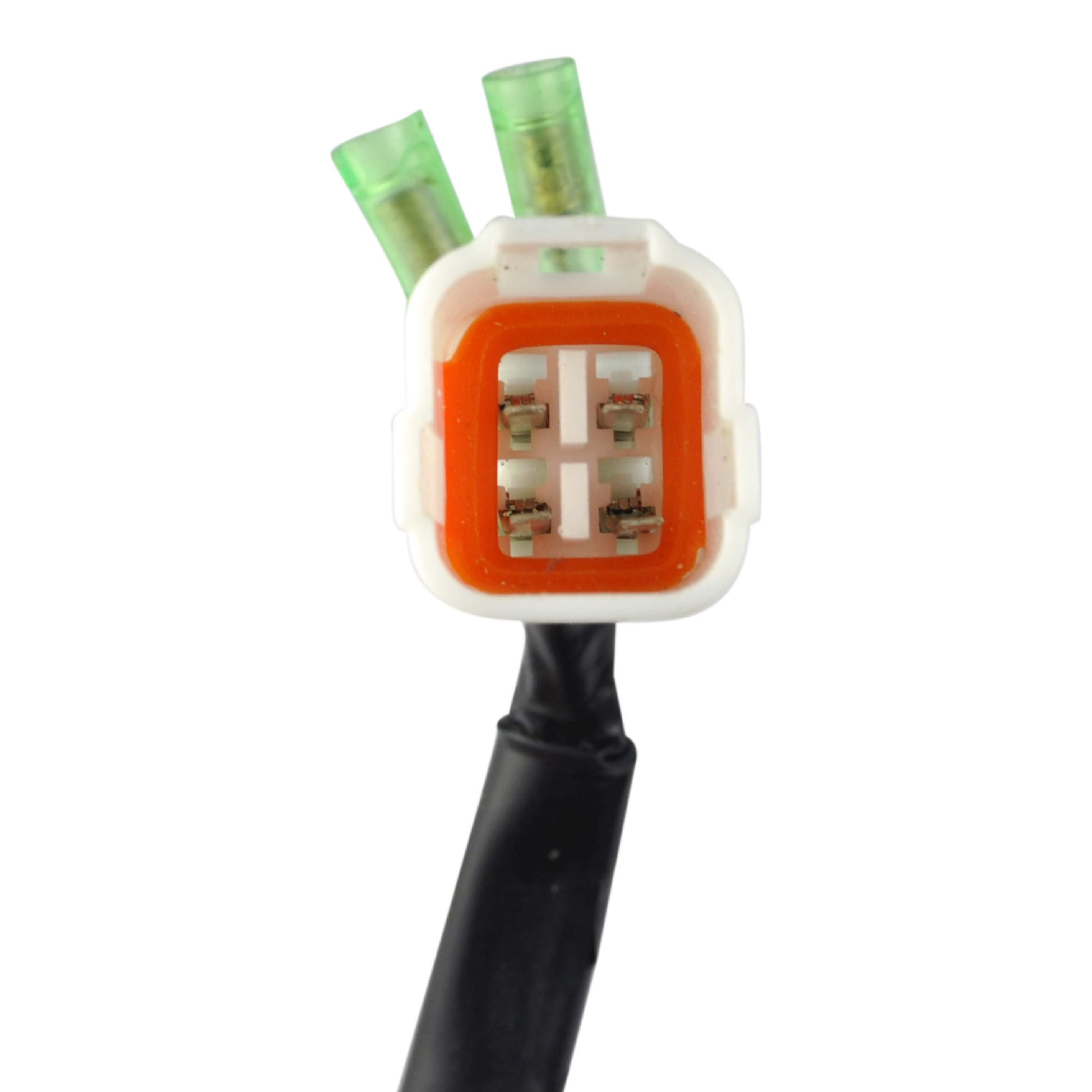

  • Connector included
  • Rubber grommet included
  • Back Plate included
  • Adjustable timing plate to advance and retard up to 10 degrees included
  • One year limited warranty

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

AC Regulator

  • 12 Volts regulator used by Baja winners
  • For use with all standard halogen and quartz lights
  • Precise voltage control, eliminates light burnout
  • Reduce flickering and dimming
  • Simple installation
  • Works with all other OEM parts
  • Rated at 225 watts.
  • One year limited warranty
  • *All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

  • Yamaha YFZ 350 Banshee 1995 -2006

Replaces OEM

  • 3GG-85510-00-00
  • 3GG-85510-01-00

Plug-and-Play / Direct Fit


As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.

As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.

What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical

Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook  Instagram  Twitter

STATOR
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.4 ohms+/-20%
Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Source 1 = Green to Red 12 ohms+/-20%
Interior Diameter: 34mm
Exterior Diamter: 103mm
Thickness:  27mm

Before installing your new stator

  • Check the AC output of the stator.
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring.
  • Use hi-temp dielectric grease on all connectors

Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.

When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
