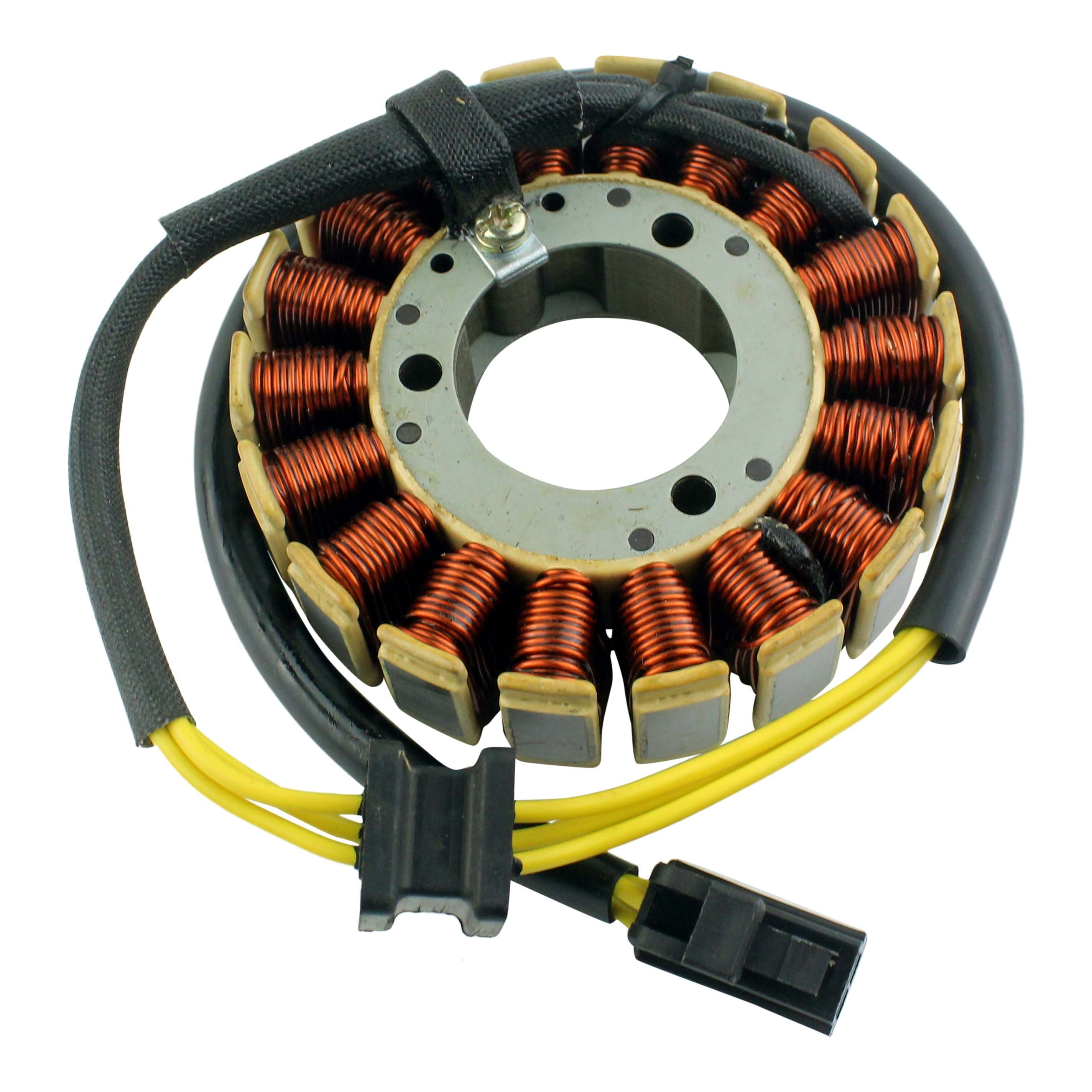

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287
Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287
Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287
We are a wholesalers, please contact our dealers for ATV Parts.
print
Print this page

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287

SKU: RM01319
Item Condition: New

In stock

Login or register to view our best trade prices
Full Description
Technical Details

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287

Kawasaki KLF220 | KLF250 Bayou Stator Coil | Replaces 21003-1287

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • One year limited warranty
  • Top quality aftermarket parts from ATV City, Delivered to you

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Fits Models

  • Kawasaki KLF 220 Bayou 1996 -2002
  • Kawasaki KLF 250 Bayou 2003 -2011

Replaces OEM

  • 21003-1287


As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.

As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.

What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical

Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook  Instagram  Twitter

Dimensions :
Interior diameter : 36mm
Exterior diameter : 93mm
Thickness : 18mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 240mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
