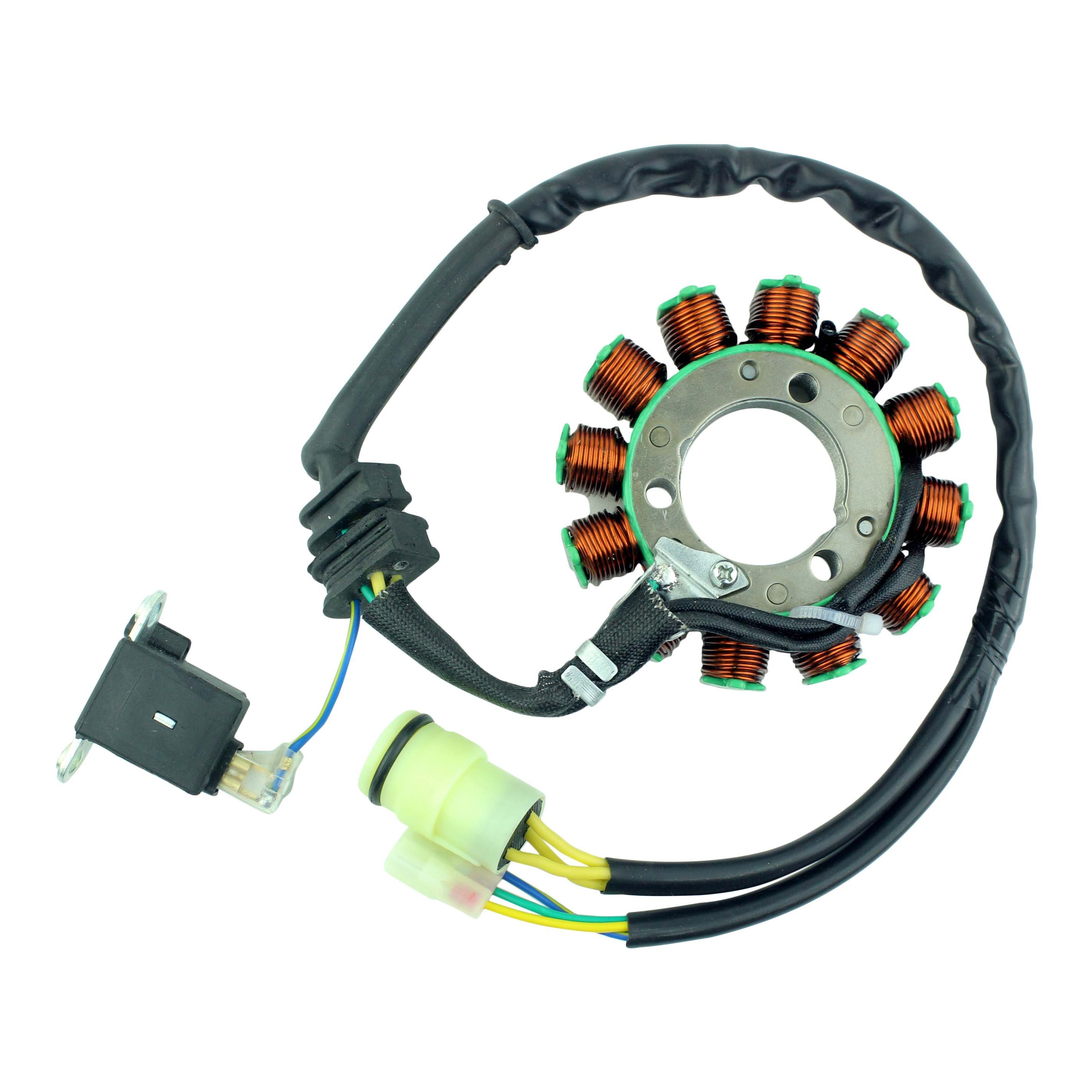

Stator Coil For Honda TRX300 Fourtrax | Replaces 31120-HC4-014
NOTE: There are two different versions of TRX 300 Stators
RM01289 with 12 bobbins (this one) and AHA4046 with 18 bobbins.
Please make sure you checked those details with your old unit before ordering.
As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.
As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.
What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical
Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook Instagram Twitter
Dimensions :
Interior diameter : 34mm
Exterior diameter : 88mm
Thickness : 15mm
Length of wires stator to grommet : 65mm
Length of wires grommet to plug : 290mm
Length of pickup coil’s wire to grommet : 25mm
Other:
Number of wires : 6

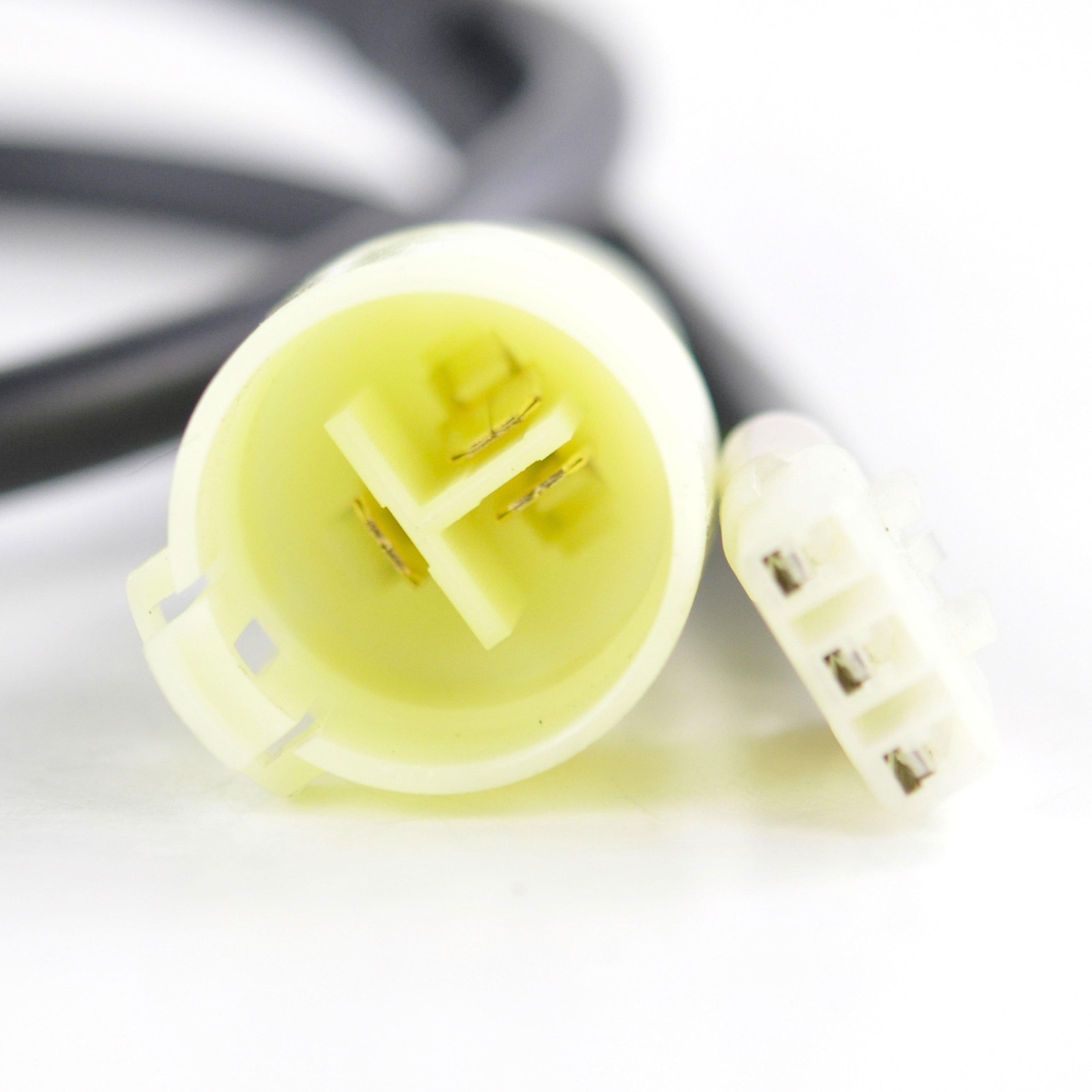

Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.4ohms +/-20%
Pickup : Blue to Yellow = 335ohms +/-20%
