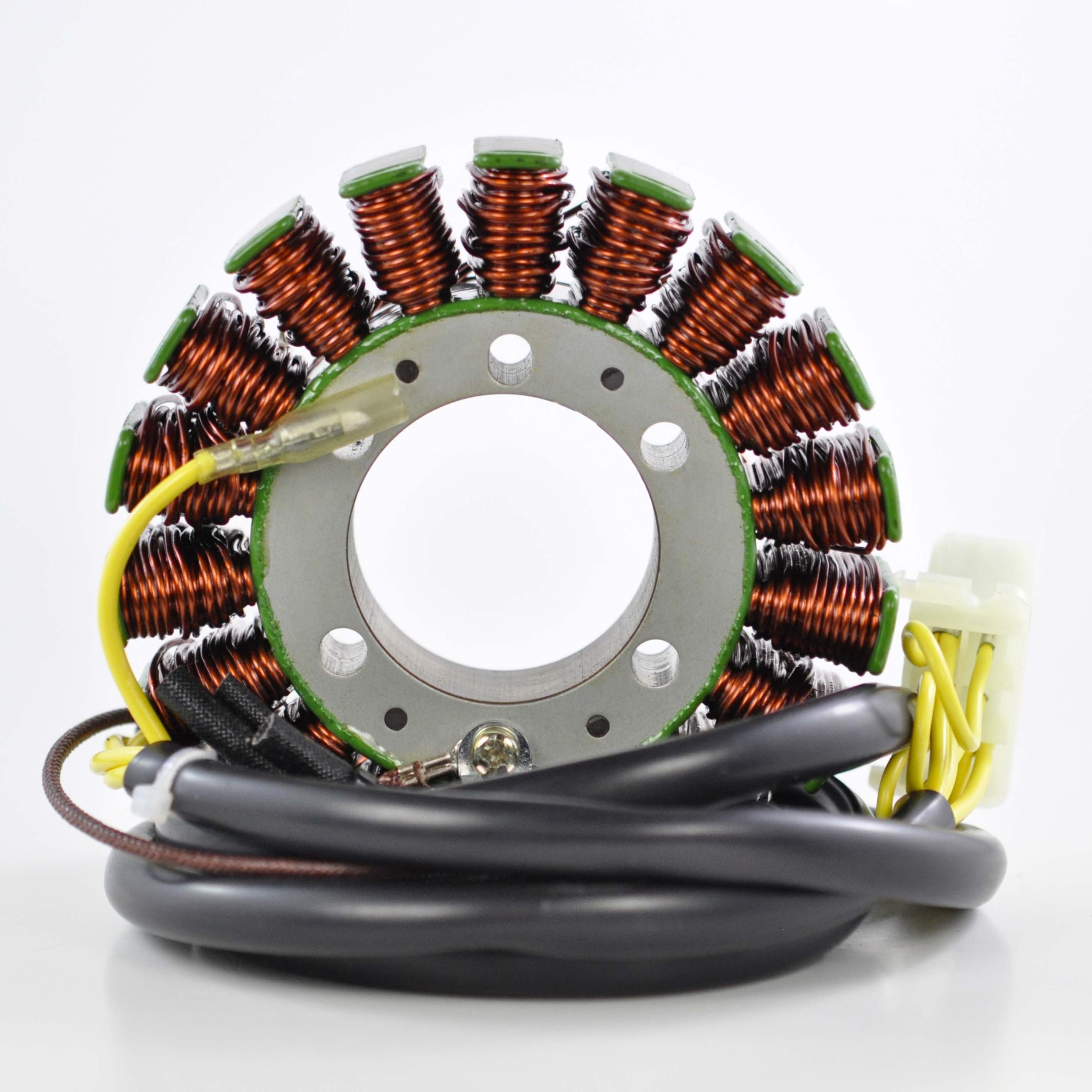

*18 pole stator . There is more that one possible stator for the sportsman 700 Non-EFI 4×4 2004.
*The RM01057 OD is 107mm, ID 41mm, thickness is 23mm.
Please double check before ordering.
As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.
As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.
What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical
Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook Instagram Twitter
| Unit Type | Part |
| Part Type | STATOR COIL |
| Voltage | 12 |

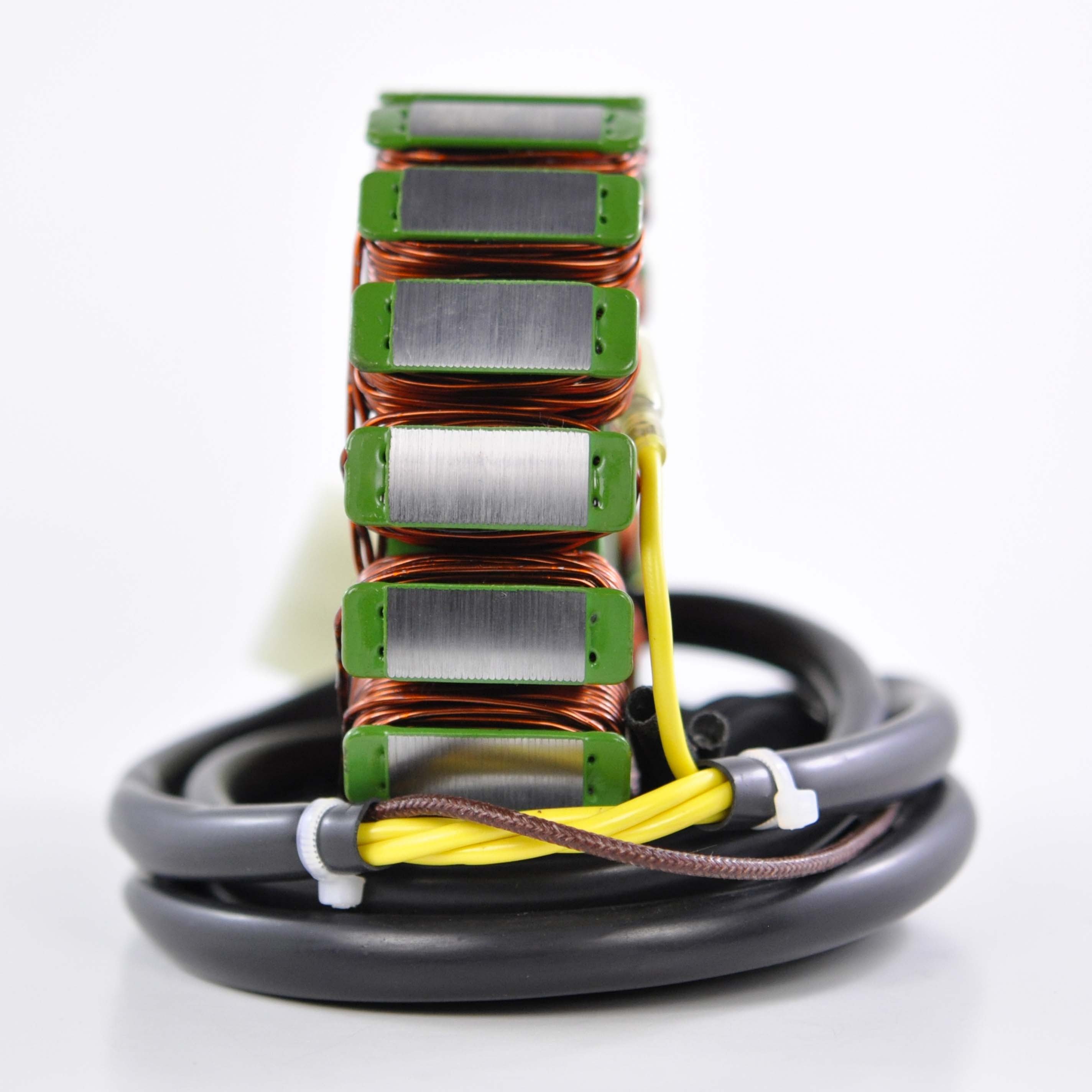

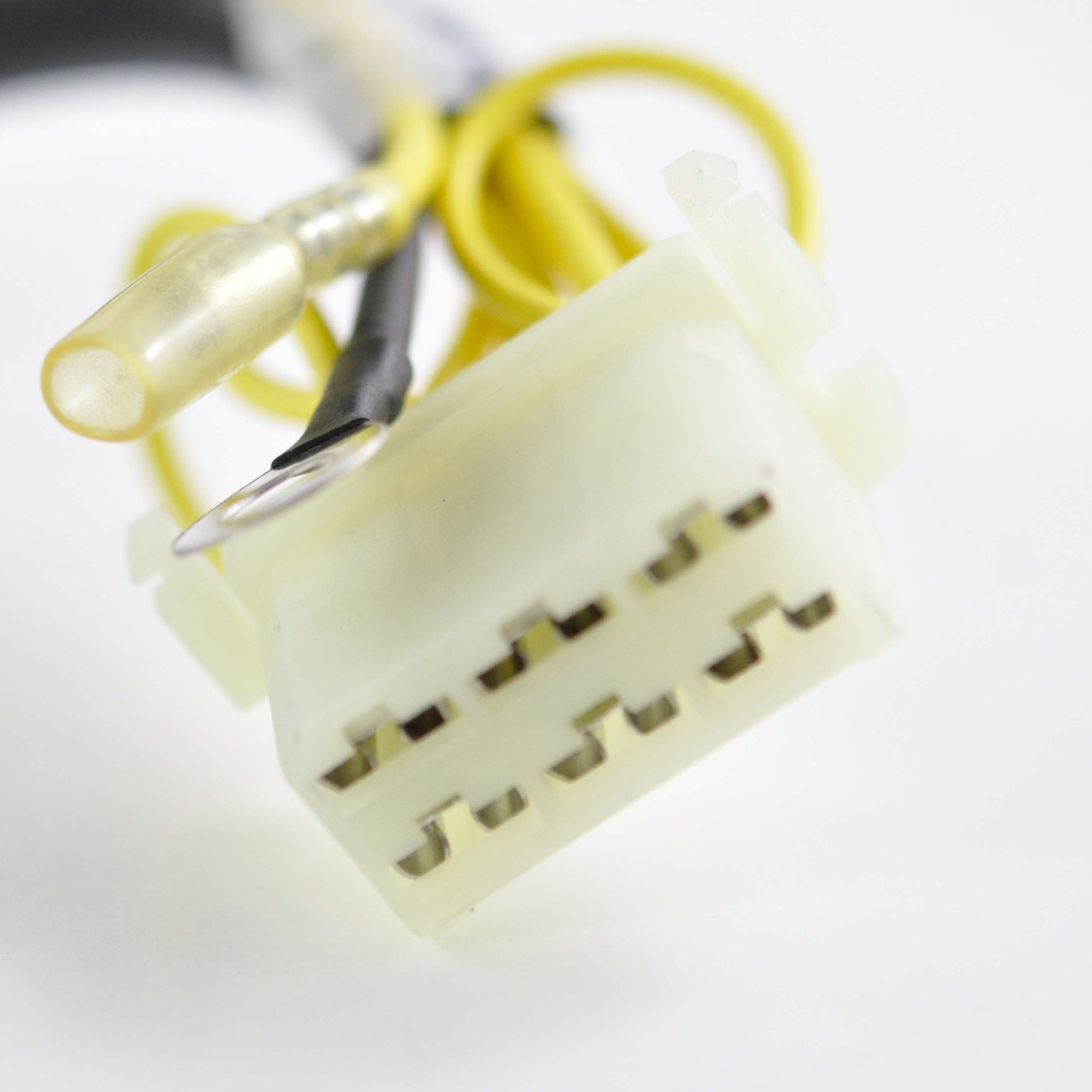

| Dimension | ID 42mm OD 108mm Width (OD) 33.8mm Width (ID) 25.3mm # Posts 18 Mounting Holes 4 – 6mm, 1 Oblong 5.6mm x 6.5mm Cord Length 57 Inches (6-Pin Plug on End) Cord Length 4 Inches (To Grommet) |
| Brief | Polaris Sportsman 700 2004-06 Polaris Sportsman 800 2005-06 Polaris Ranger 4×4 700 2005 |
