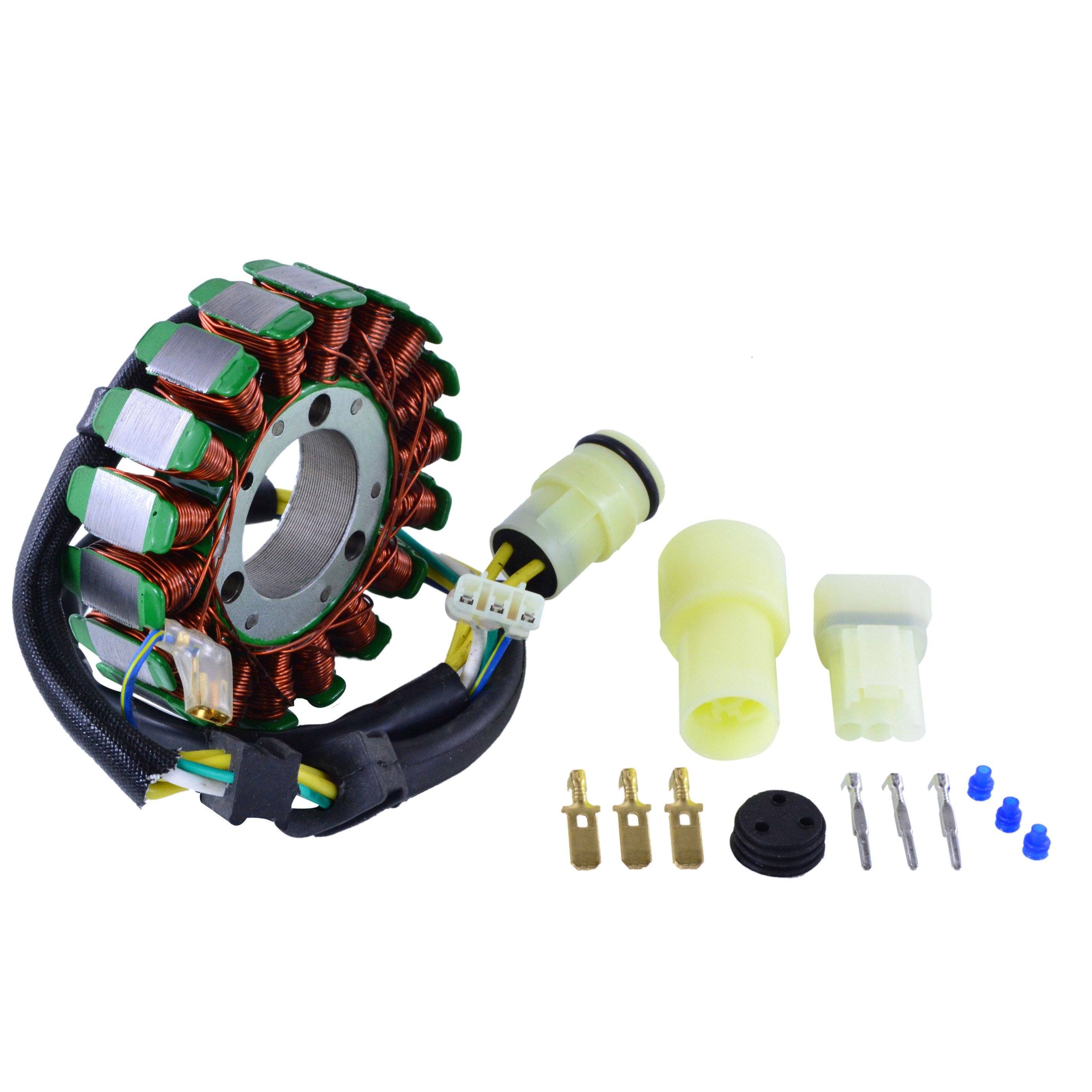

Stator For Honda TRX300 2×4 / TRX300FW Fourtrax / 4×4 Mitsuba 18-pole 1988-2000
This high-quality stator is designed to deliver dependable charging performance and consistent electrical output for your Honda ATV. It helps keep the battery charged while powering the ignition system and other essential electrical components.
Built as a direct replacement for the original Mitsuba 18-pole unit, it offers accurate fitment and reliable operation.
Compatible with Honda TRX300 2×4 and TRX300FW Fourtrax 4×4 models from 1988 to 2000.
An ideal solution for charging faults, weak spark, or hard starting issues, helping restore reliable performance and long-term durability.
As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.
As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.
What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical
Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook Instagram Twitter
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92 mm
Thickness : 16 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 270 mm

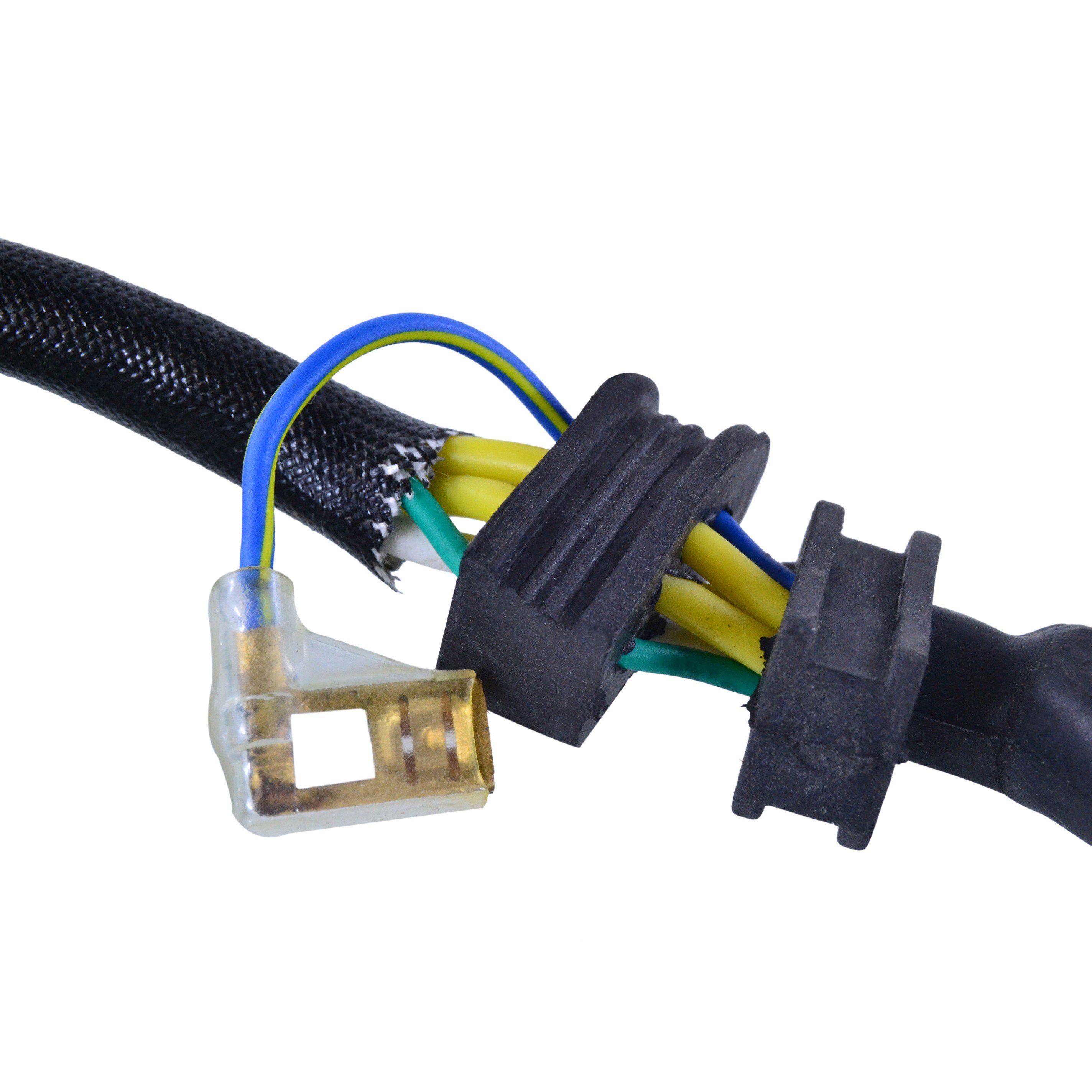

Length of pickup coil’s wire to grommet : 20 mm
Other specifications :

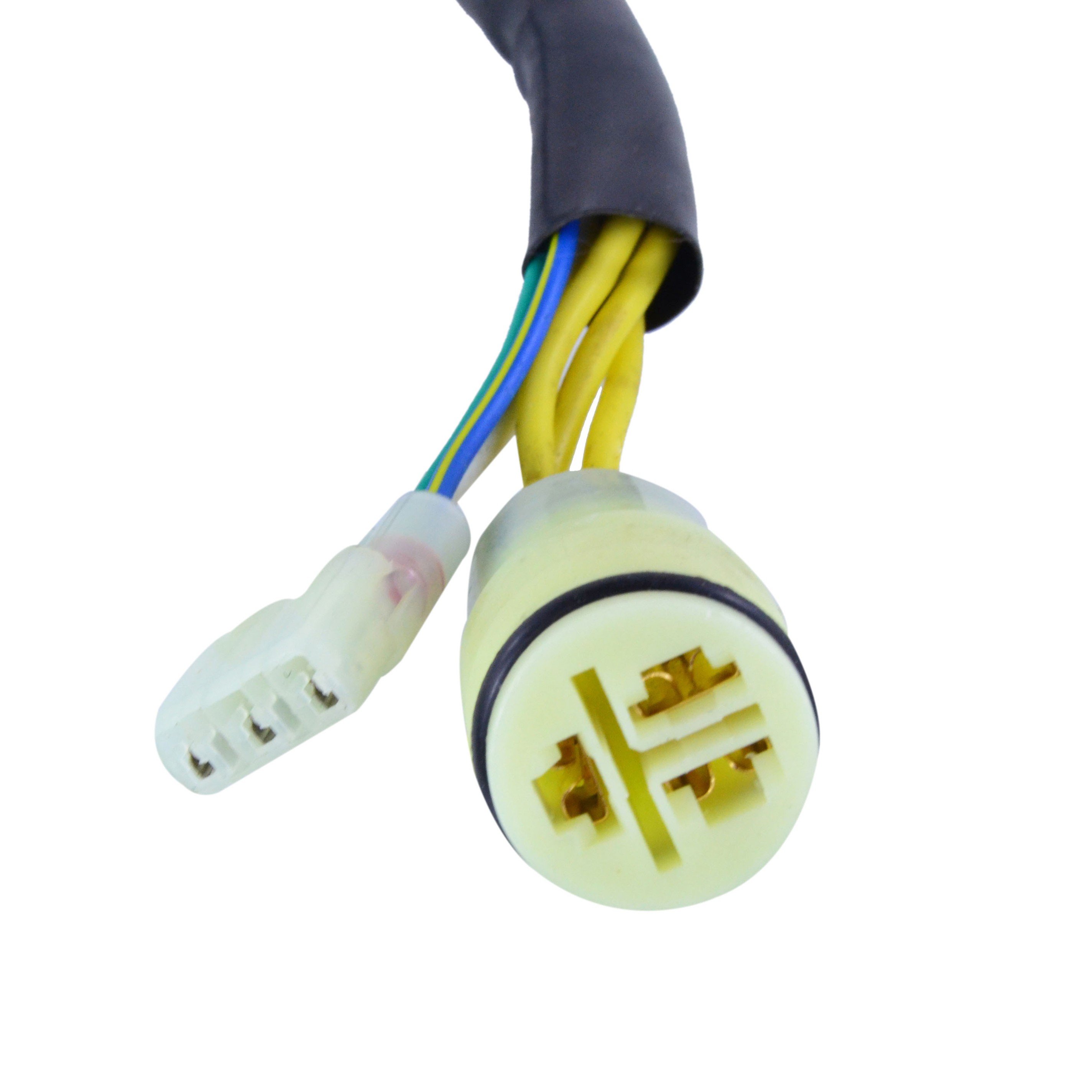

Number of wires : 6
Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator : Between each Yellow= 0.4 ohms +-20%
Source : Blue/Yellow to Ground = 350 ohms +-20%
