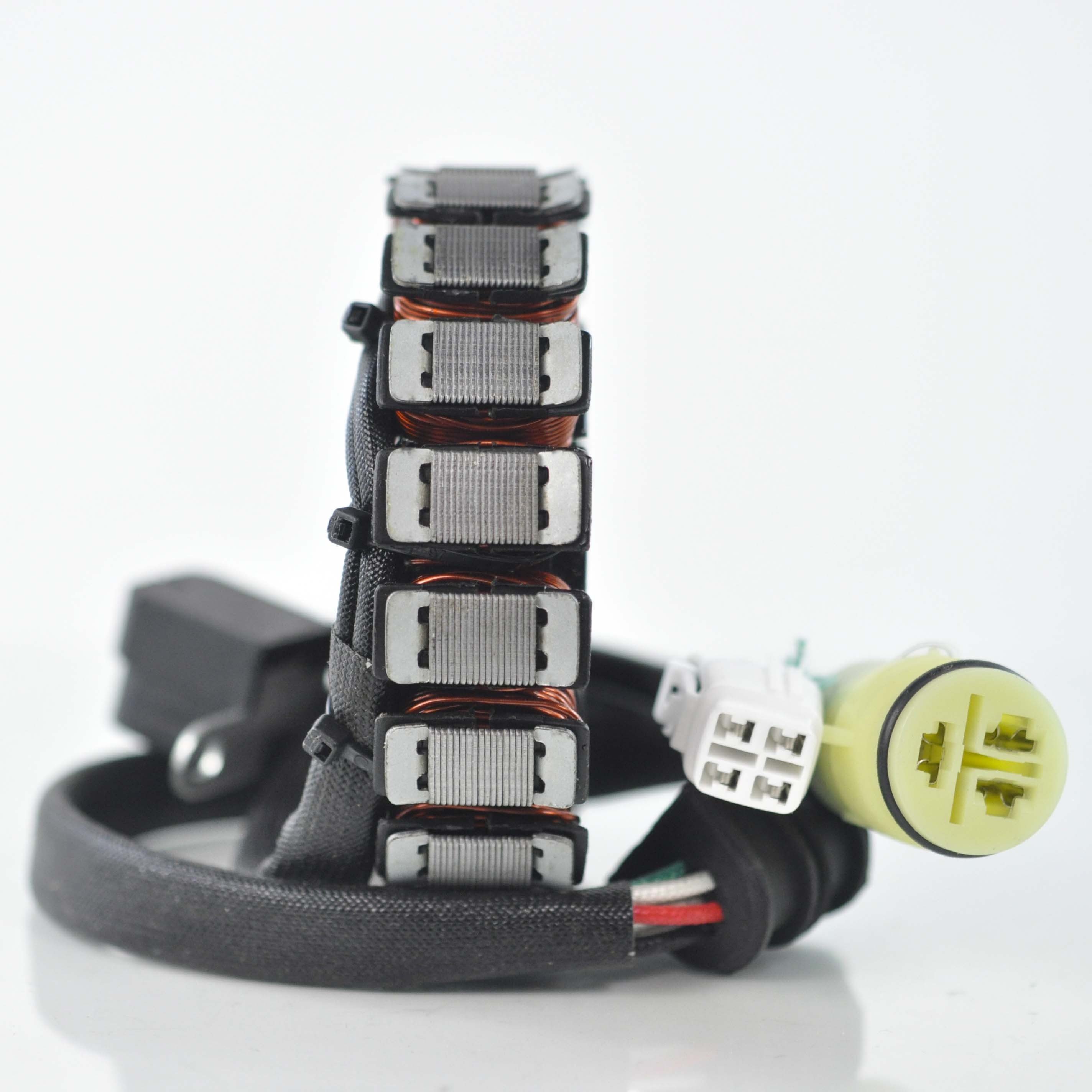

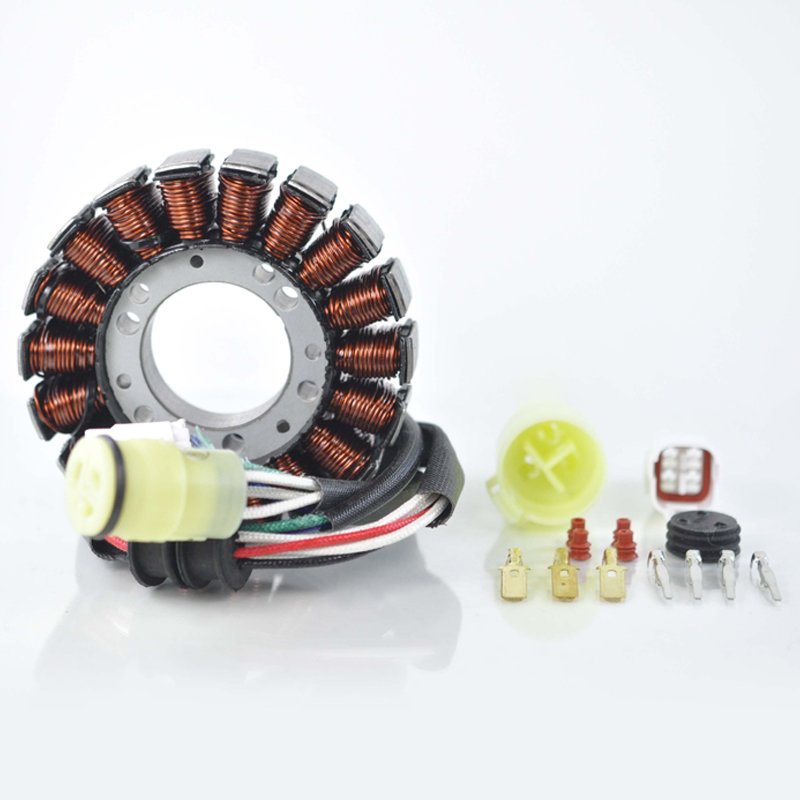

Dimensions :
Interior diameter : 34mm
Exterior diameter : 94mm
Thickness : 13mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 220mm
Length of pickup coil’s wire to grommet : 100mm
Other specifications :
Number of wires : 7

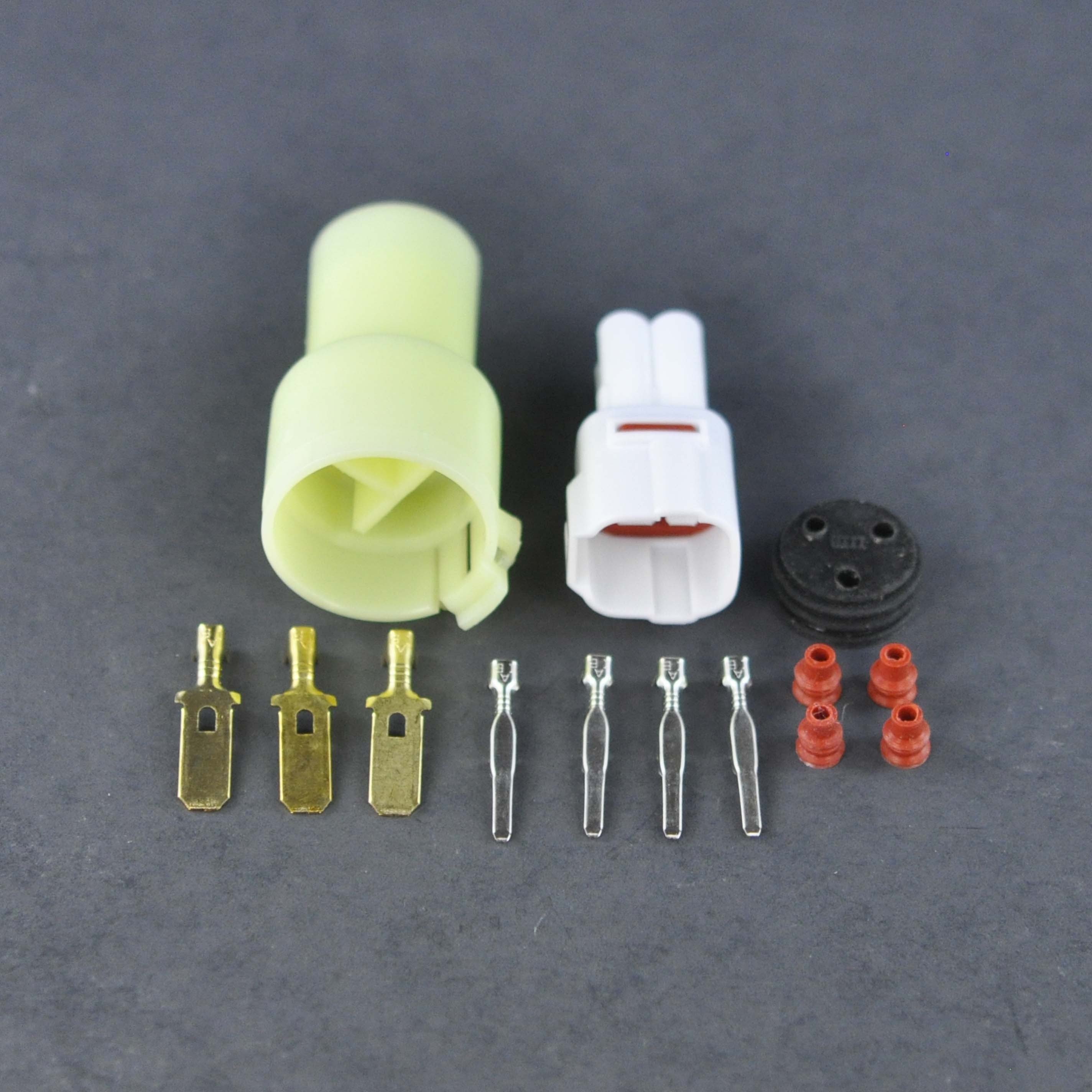

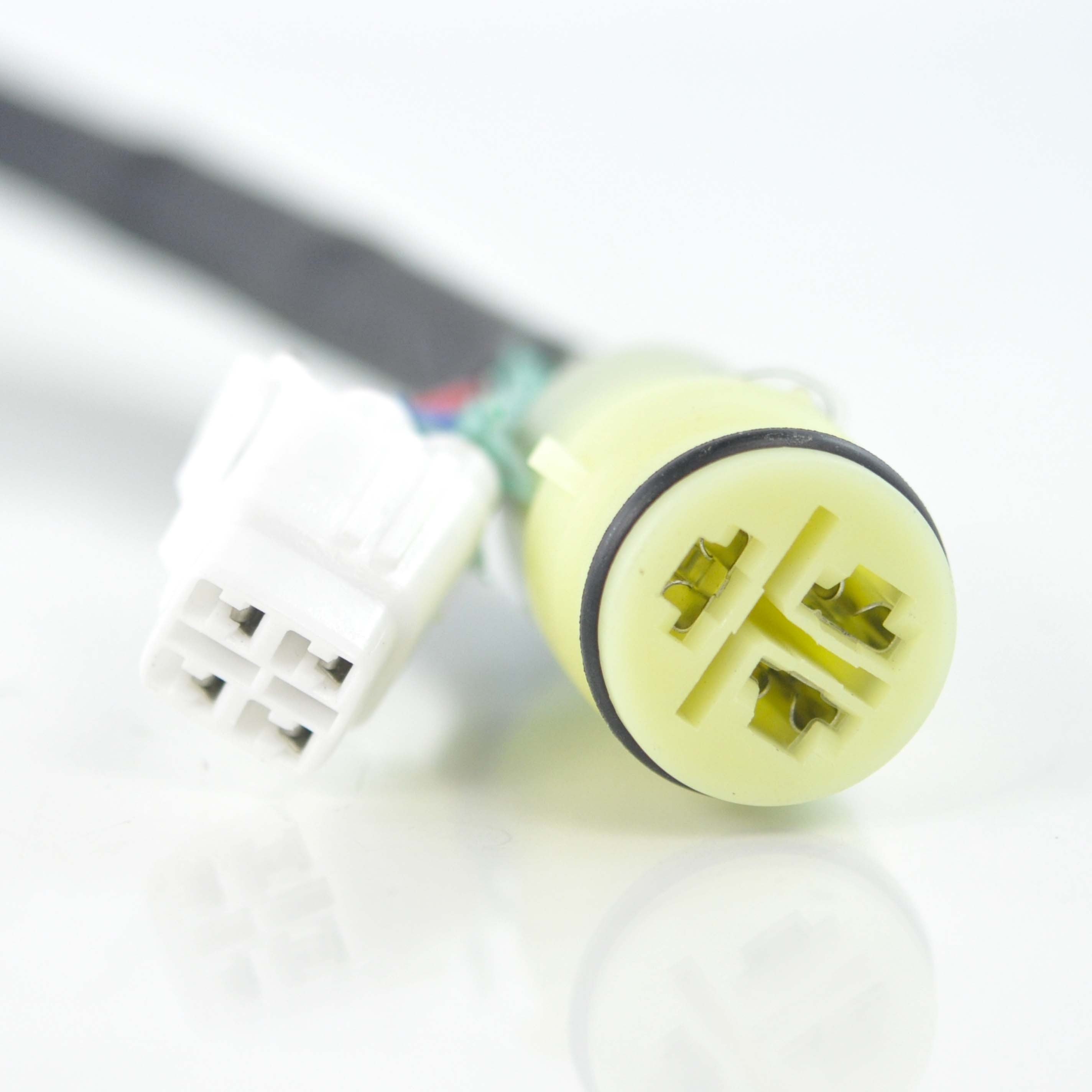

Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%
Before installing your new stator:
Our stator may use a different wire color code then you’re original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010’’.
