Stator Cover Gasket RM08024
Perfect to complement your Stator.
Plug-and-Play / Direct Fit
As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.
As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.
What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical
Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook  Instagram  Twitter

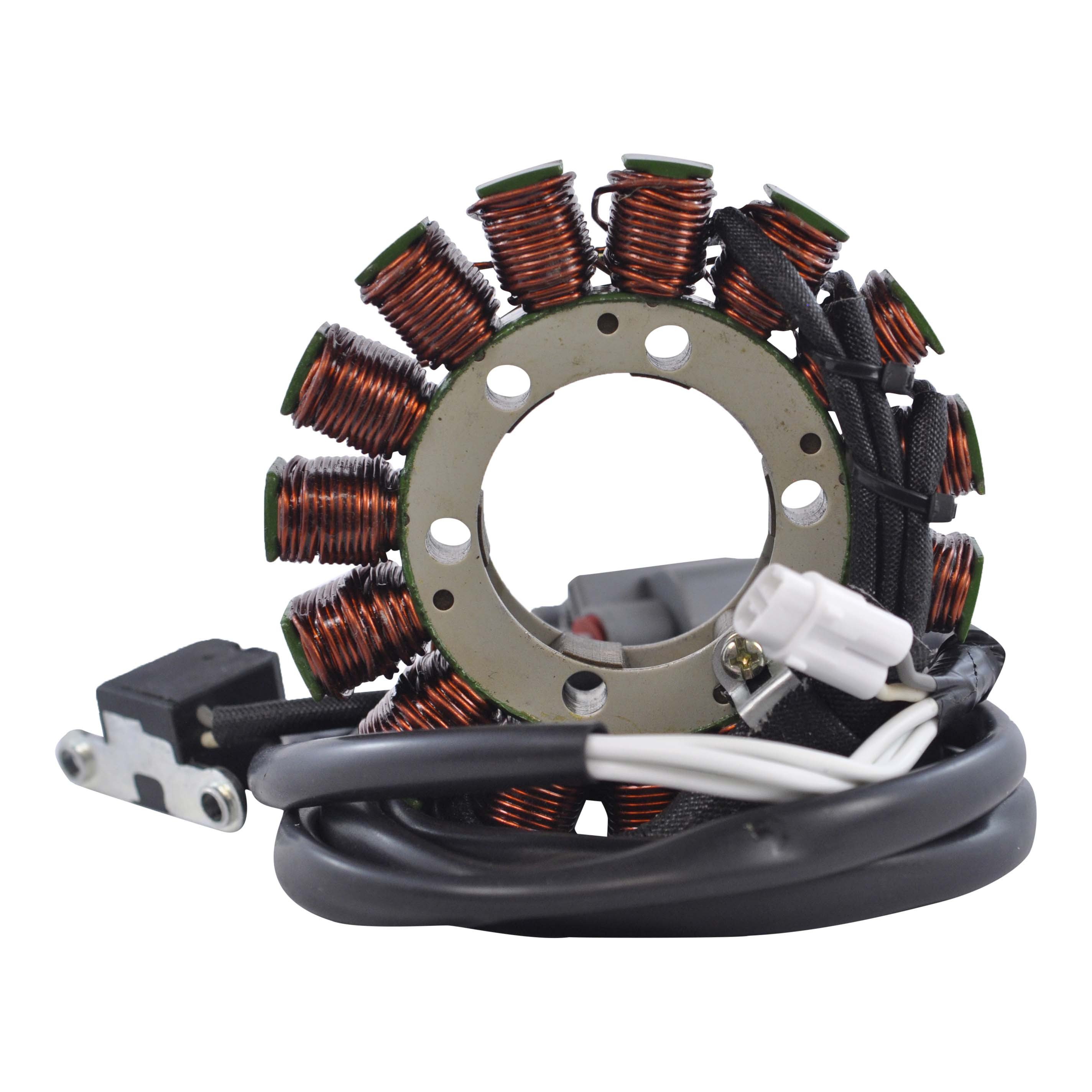

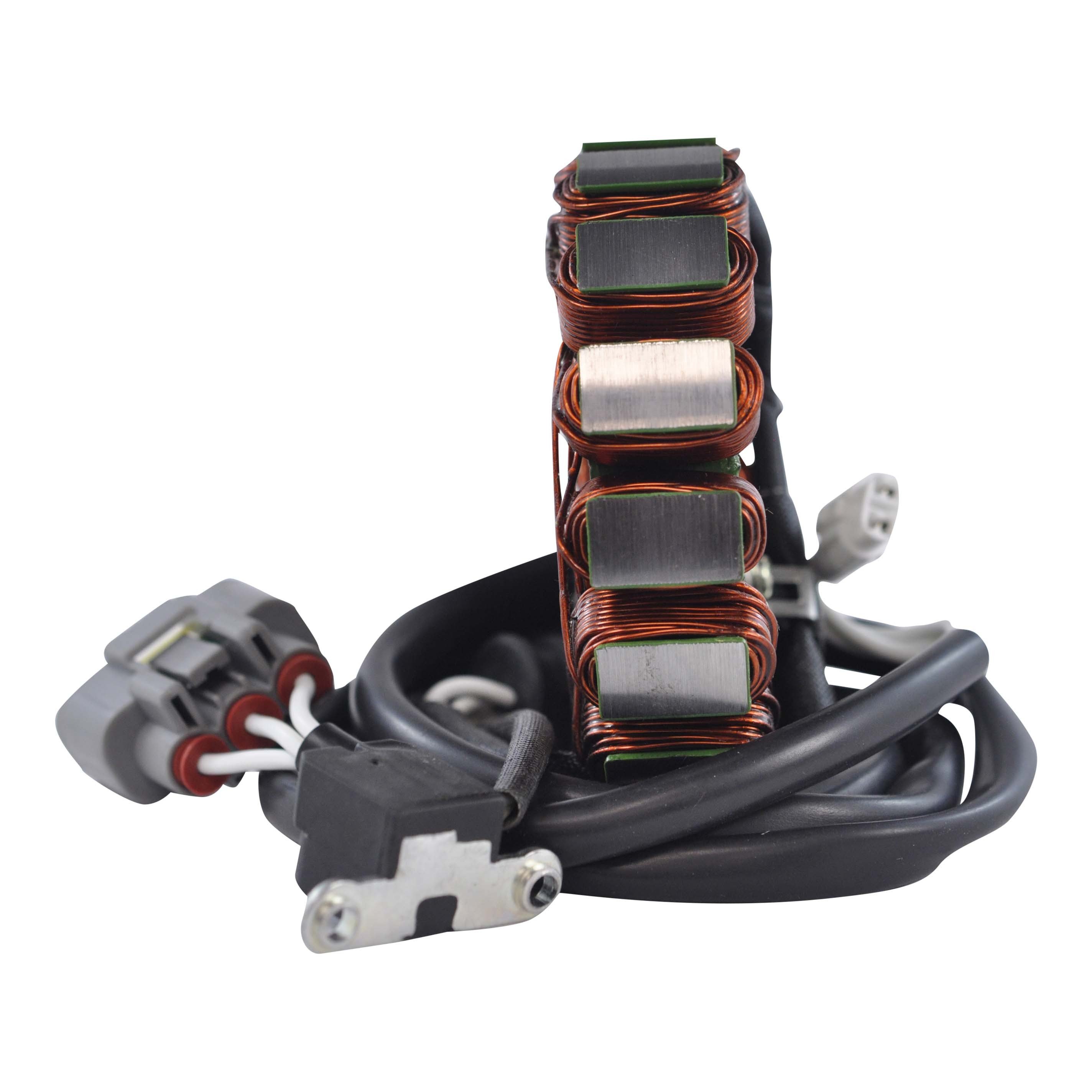

Dimensions :
Interior diameter : 45mm
Exterior diameter : 106mm
Thickness : 27mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 550mm, 1100mm
Length of pickup coil’s wire to grommet : 80mm
Other specifications :
Number of wires : 5

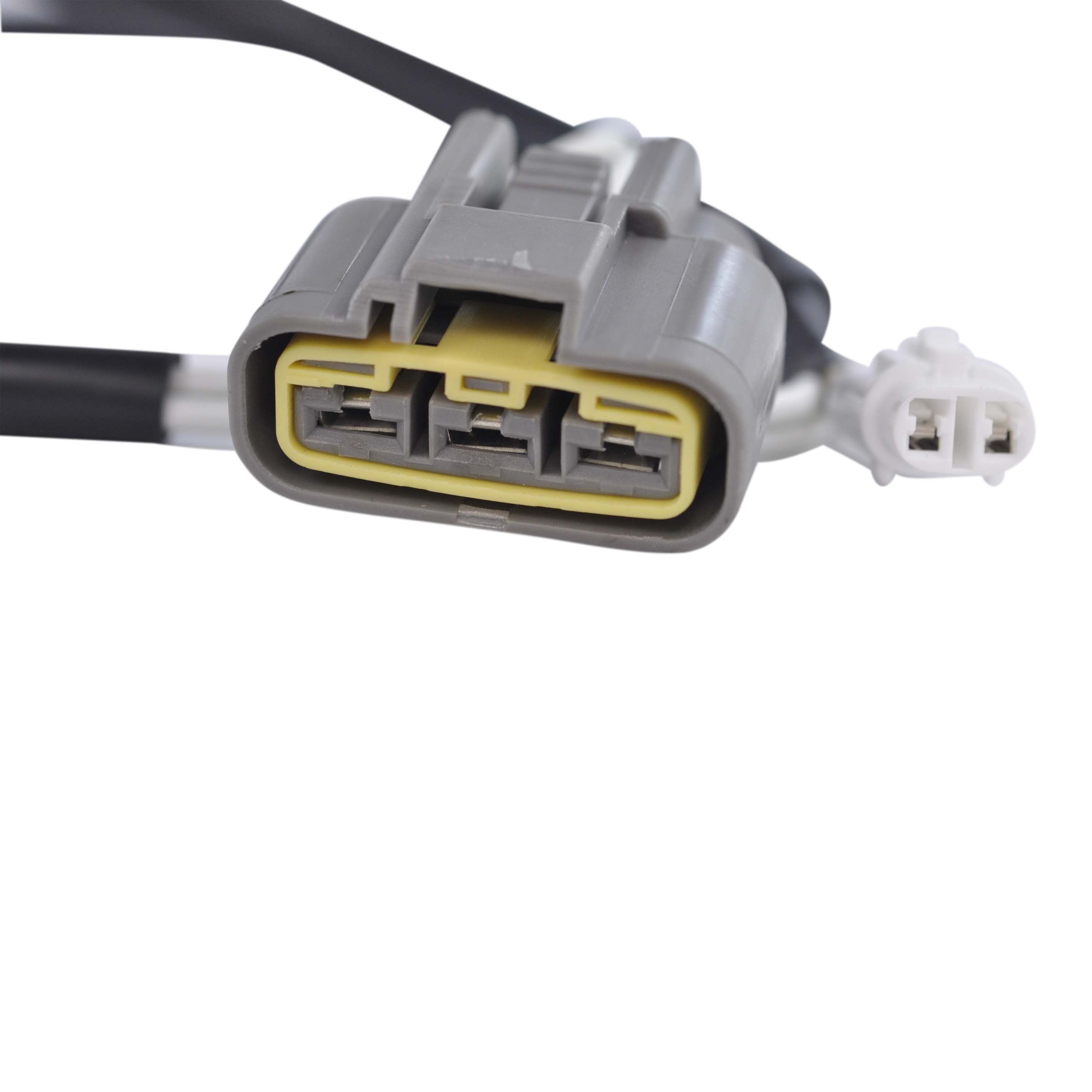

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Alternator : White to Ground = 0.L on Display
Pickup : White to Grey = 500ohms +/-20%
