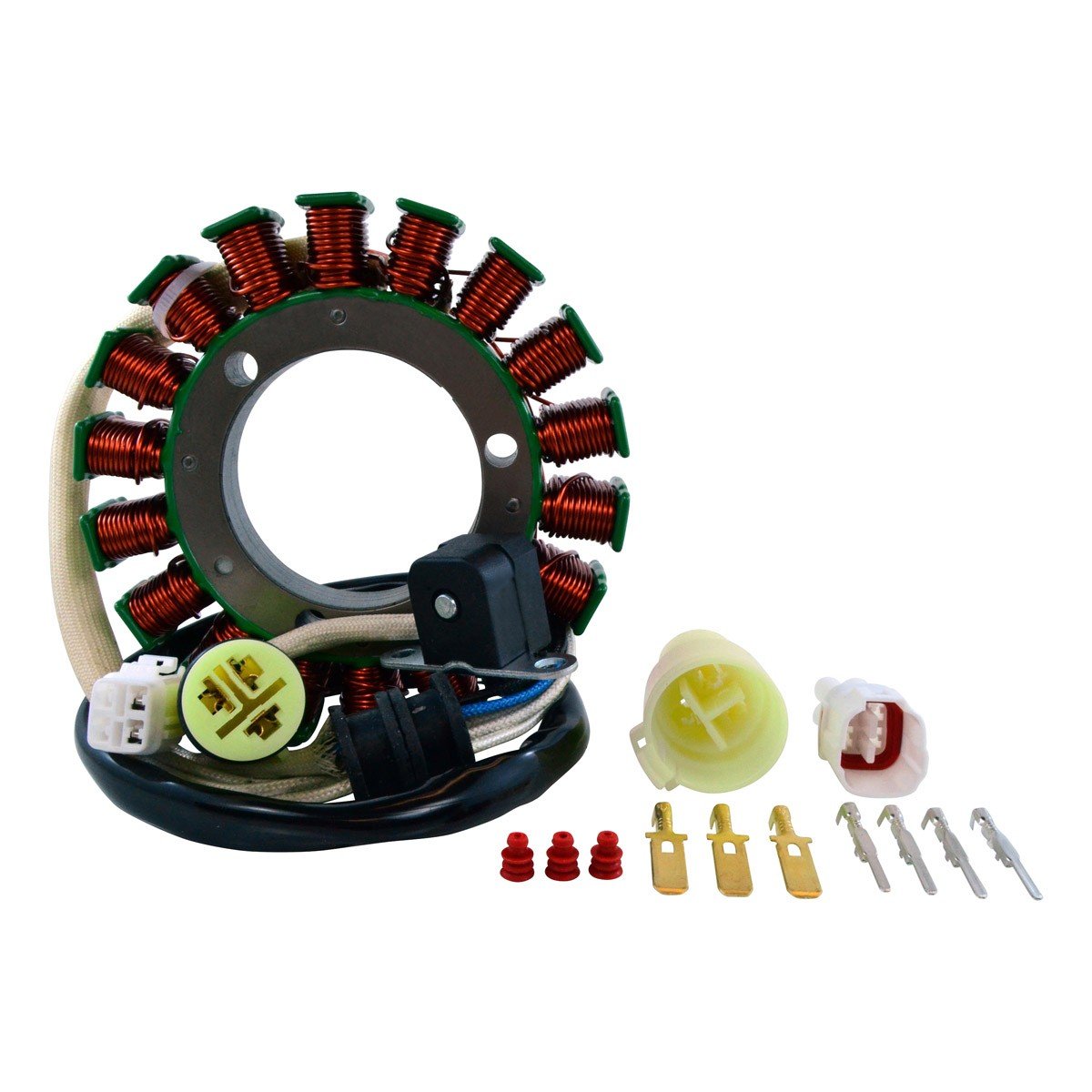

Stator For Bennche Coleman Powersports Hisun Massimo + Qlink | ATVs + UTVs | 2008-2017
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
This Stator is also compatible with the following brands:
If in doubt, do not hesitate to compare our item to your original OEM part, referring to your specifications and our photos.
*Compatible for both Carb and EFI models.
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
As you already know, ATV City is a wholesale distribution company that sells only to dealers operating within the ATV, UTV and quad bike industry.
As one of the most prominent names in the industry, we take pride in every product we stock.
All our products are available throughout our network of over 600 dealers in the UK, Ireland and EU.
What you may not know is that ATV City has a sister company offering many other electrical components for many other vehicles and applications. Moto-Electrical
Don’t forget to check us out on our social media to stay up to date with our latest products and news.
Facebook Instagram Twitter
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 15.50 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 450 mm
Length of pickup coil’s wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each White = 0.4 ohms +-20%
Pickup : Blue to Black = 200 ohms +-20%
